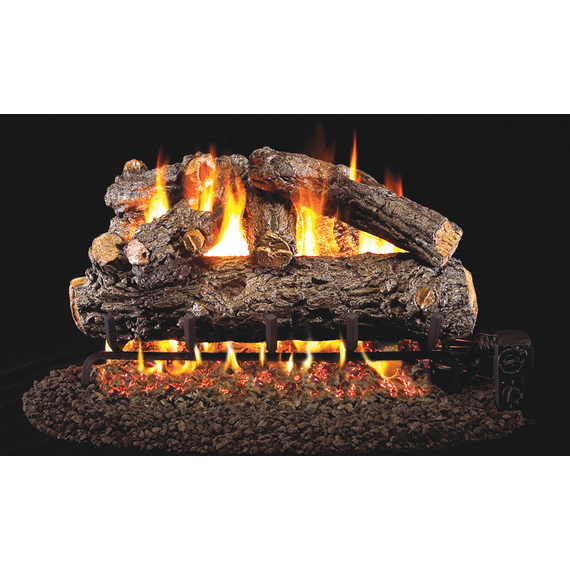

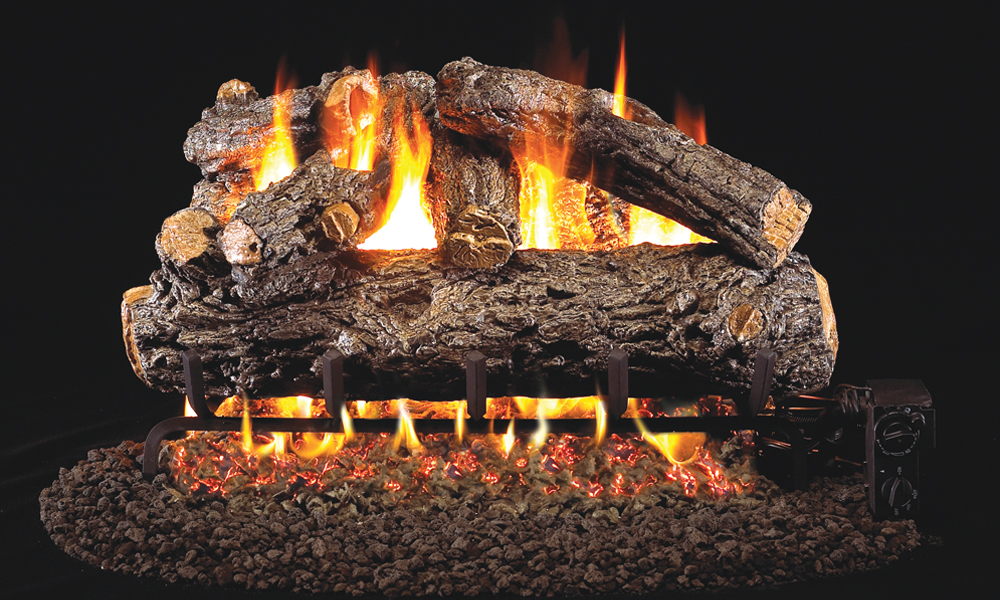

Real Fyre Rustic Oak Designer Log Set With G4 Burner Kit
For an attractive gas log that resembles a real fire, I recommend the Real Fyre Rustic Oak Designer with the G4 Burner Kit. The logs are painstakingly painted and sculpted into the shape of oak logs. As a result, they possess a wood-like texture and color, as opposed to a synthetic look. Furthermore, it is constructed with super-durable, high-temperature ceramic. These pieces can withstand heat and be used permanently. And those logs even have internal steel rods for added strength. Now, the appearance of a real fire is what the G4 Burner System makes it look like. Your fire will have nice glowing ember beds and will burn with good flames along with warmth and high BTU output. And if you have peninsula, see-thru, or island-type fireplaces, don’t worry; it works for those as well.
When it comes to controls, there are options. There’s a straightforward version that just needs a striking match to ignite (Natural Gas only), a manual valve for those who appreciate a little more control, or a more sophisticated option where a remote control is available- either a millivolt system or an electronic ignition that has flame height adjustment. Very convenient. Put simply, it’s a beautiful and dependable gas log set that will help make your fireplace feel warm and natural. Contact me if you would like additional information.
Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
BURNER:

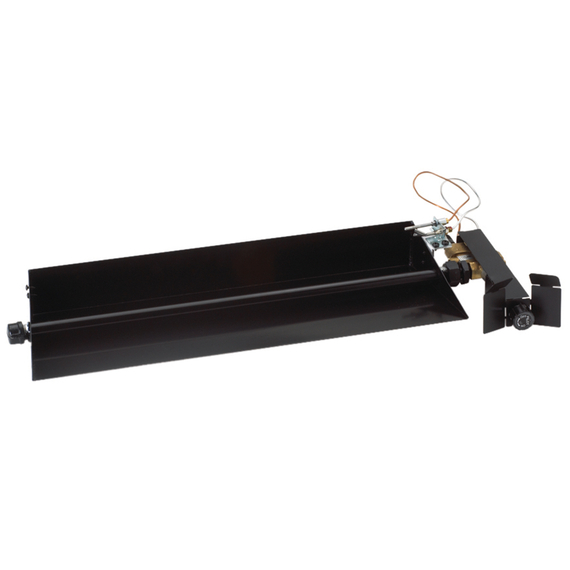

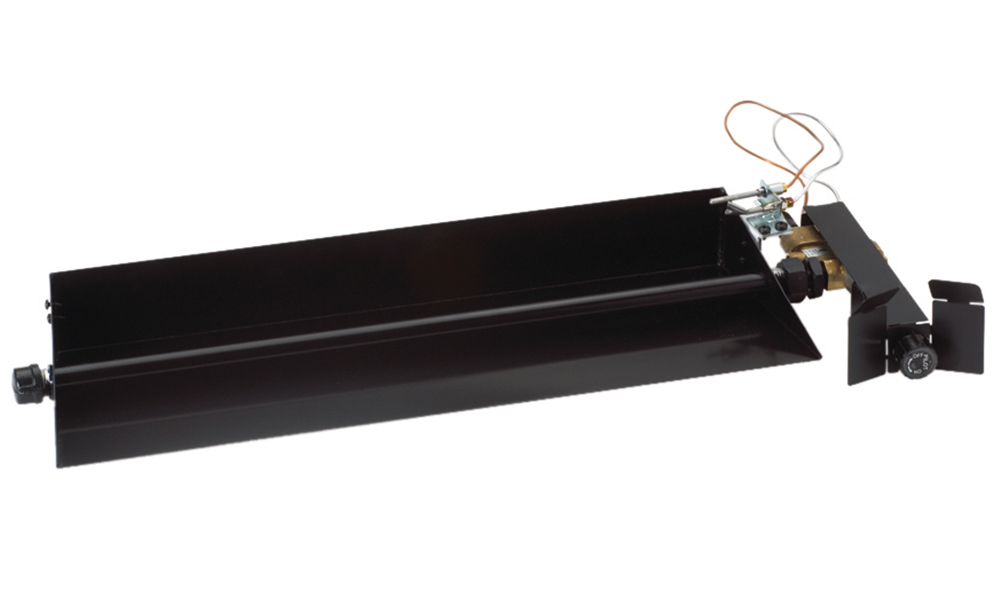

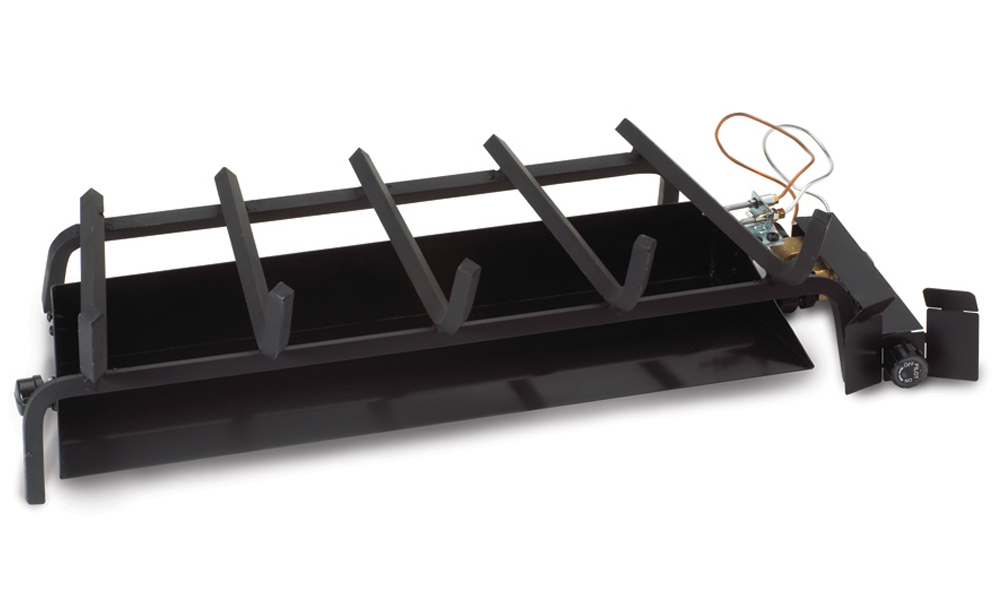

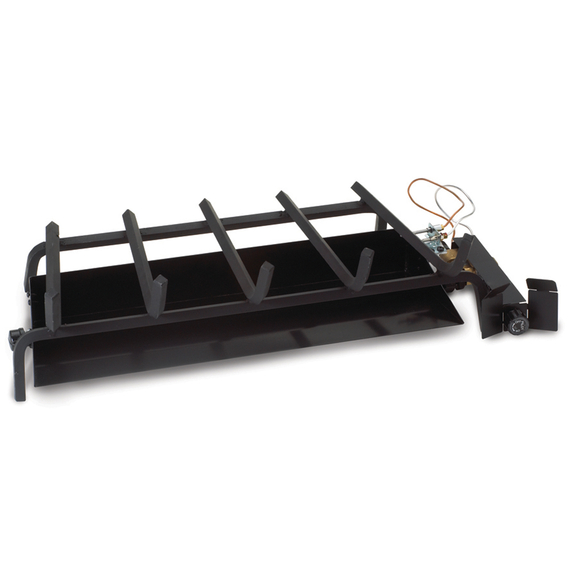

G4 Burner - delivers a high-performance, versatile solution for stunning fireplace displays, compatible with most Real Fyre® log sets. Available in 12 to 30 inches, it offers lifelike Ember Glow, high BTU output, and multiple control options, including manual, millivolt, and electronic ignition. Ideal for see-thru, peninsula, and island fireplaces, it supports Natural or Propane gas and is ANSI-certified for select sizes.
CONTROL SYSTEM:
-

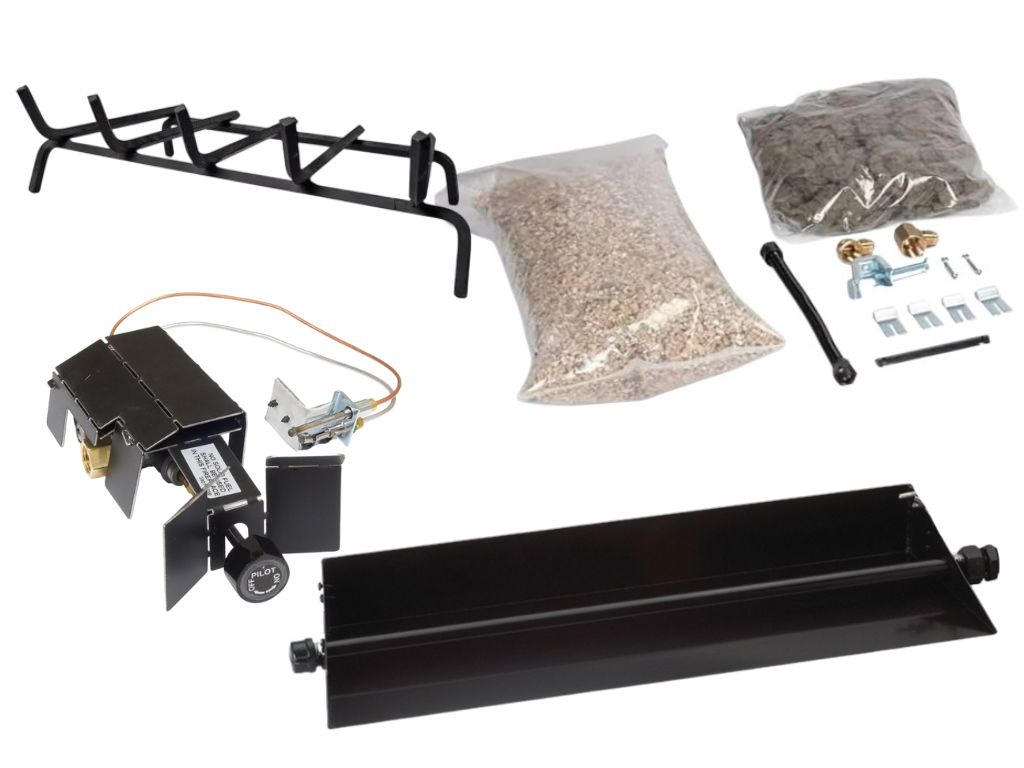

SPK-26 (P) Low Profile Safety Pilot System - A compact safety pilot system with a standing pilot, optional on/off switch, and max BTU input of 115,000 (NG) or 186,000 (LP). It is compatible with G4, G45, G45-2, and P burners and features a double heat shield for cooler operation.
-

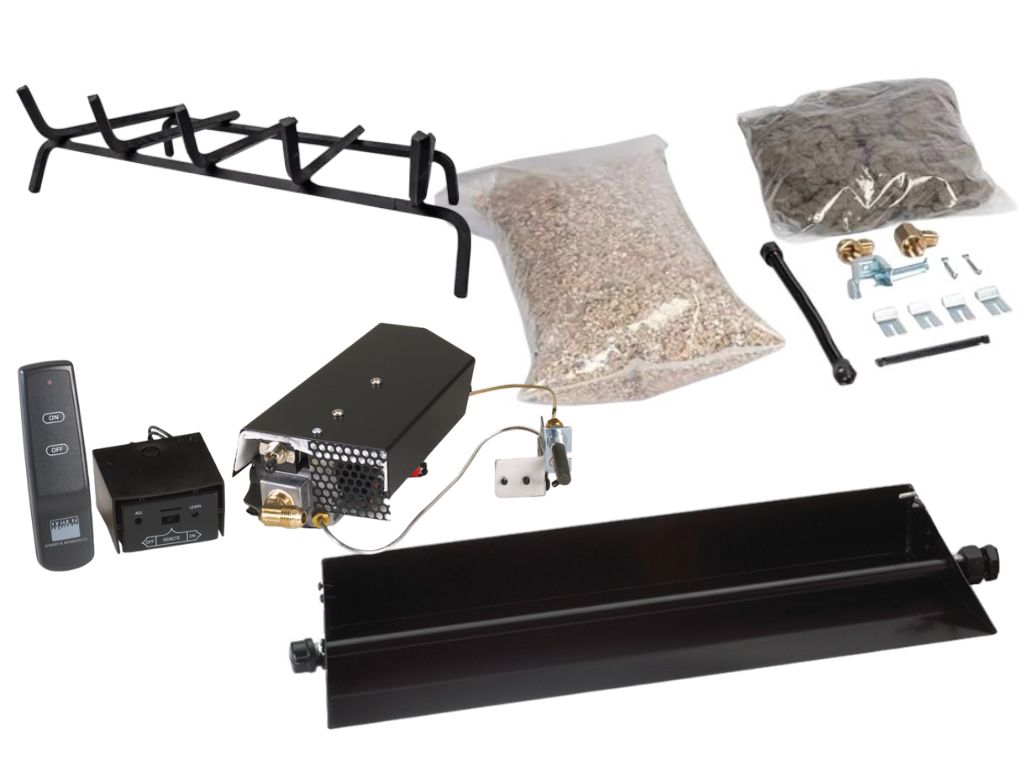

APK-11(M)(P) Automatic Safety Pilot System - A low-profile safety pilot system with a standing pilot and manual on/off switch, featuring an optional remote control. With a max BTU input of 70,000 (NG) or 110,000 (LP), it’s compatible with G4, G45, G45-2, and P-listed burners. APK-11 and APK-11P models include the RR-1A on/off remote and receiver.
-

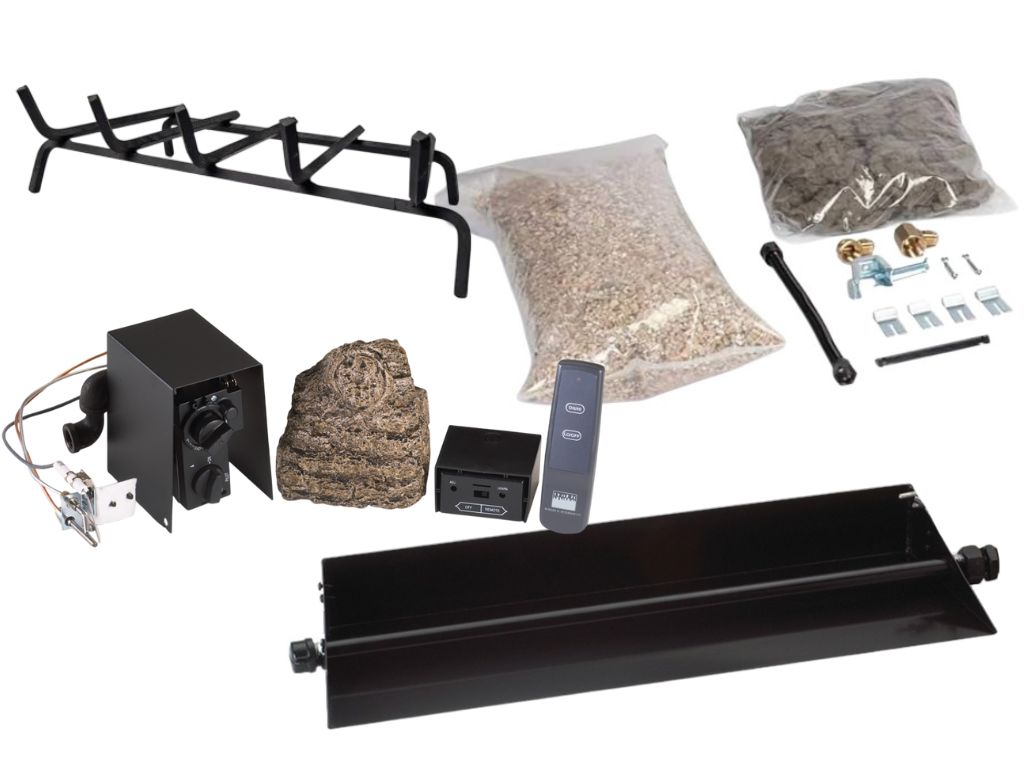

APK-15(M)(P) Automatic Safety Pilot System - A safety pilot system with a standing pilot and variable flame-height control via the included VR-1A remote. With a max BTU input of 85,000 (NG) or 135,000 (LP), it’s compatible with G4, G45, G45-2, and P-listed burners. The system includes a receiver and decorative wood chunk for added aesthetic appeal.
-

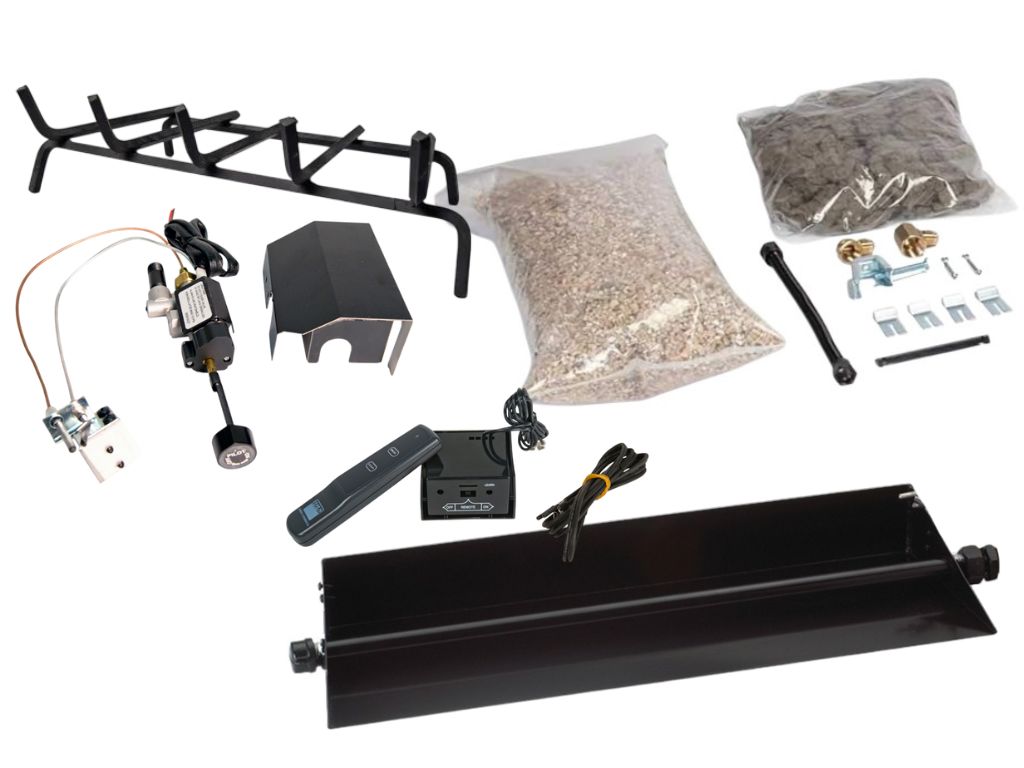

APK-17(M)(P) Low Profile Automatic Safety Pilot System - A low-profile safety pilot system with a standing pilot, manual on/off switch, and optional remote control. It offers variable flame-height control (manual or remote) and includes a triple heat shield for cooler operation. With a max BTU input of 100,000 (NG) or 200,000 (LP), it’s compatible with G4, G45, G45-2, and P-listed burners. APK-17 and APK-17P models include the VR-1A variable remote and receiver.
-

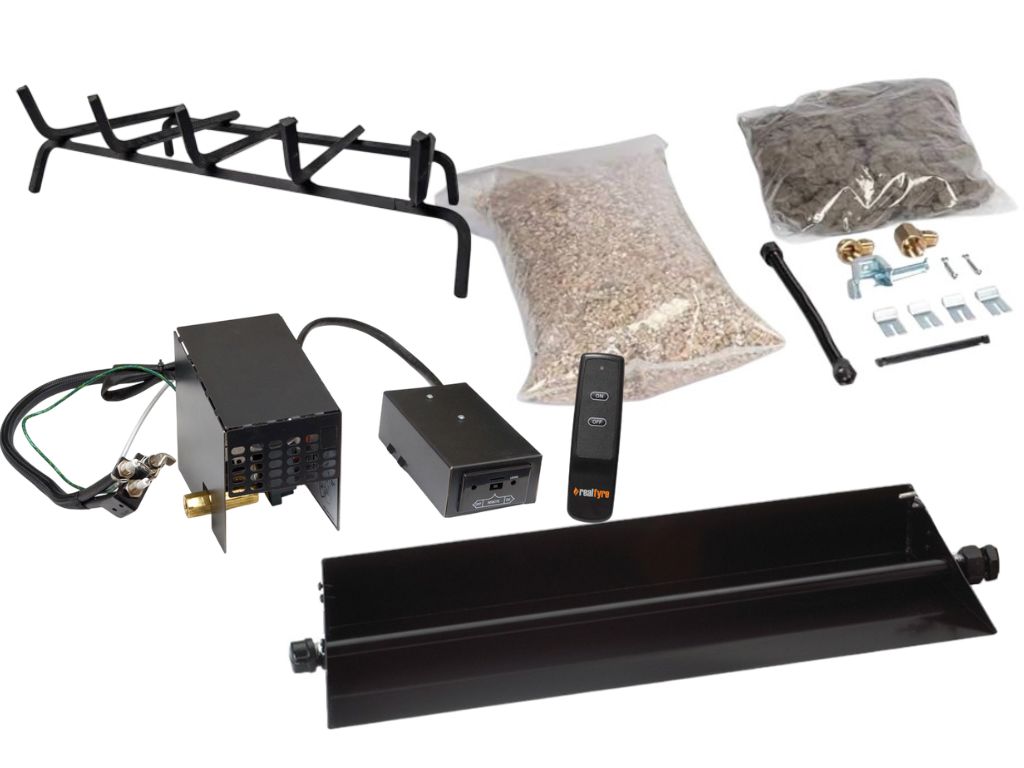

EPK-2(M)(P) Automatic Remote Lighting Safety Pilot System - This system features intermittent pilot ignition and a non-standing flame-sensing pilot. It includes a manual on/off switch, with an optional remote control. With a max BTU input of 120,000 (NG) or 190,000 (LP), it's compatible with G4, G45, G45-2, and P-listed burners. EPK-2 and EPK-2P models come with the RR-1A on/off remote and receiver.
Features:
- High-definition bark textures and natural colors for an authentic wood appearance
- Steel rods are inserted into each log for superior reinforcement and durability
- Superior refractory ceramics ensure strength retention at high temperatures
- Efficient burning technology that protects natural resources and reduces pollution
- Accessories available to enhance the hearth’s appearance
INCLUDES:
- Burner
- Custom Grate

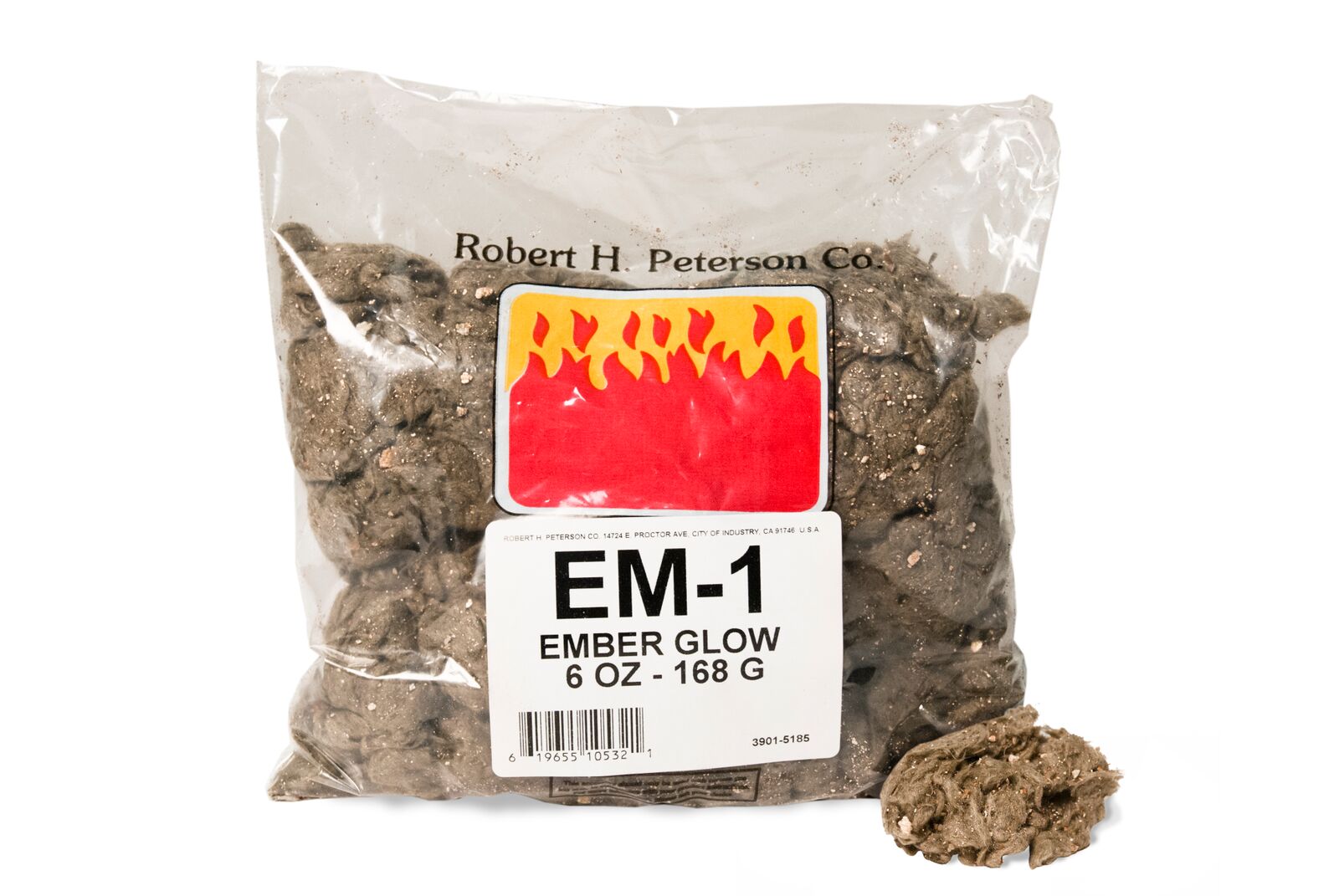

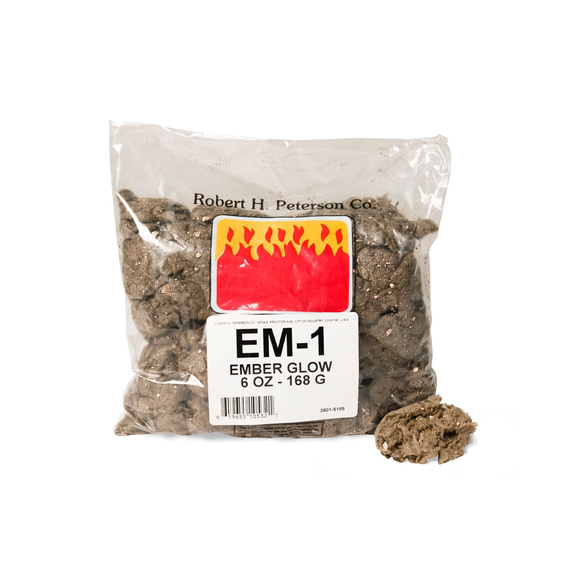

- Glowing Embers

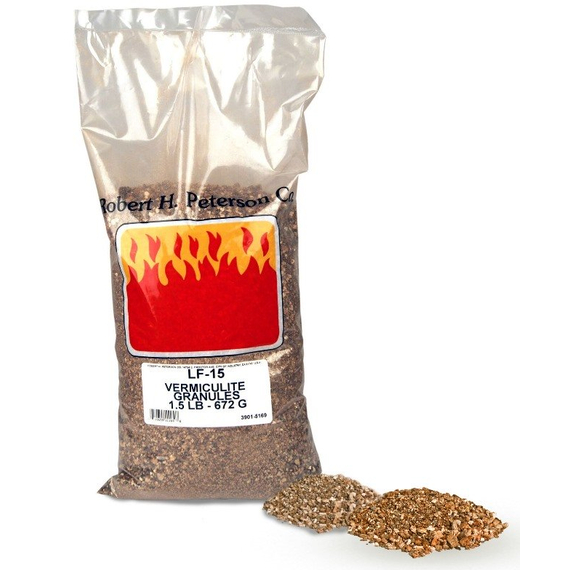

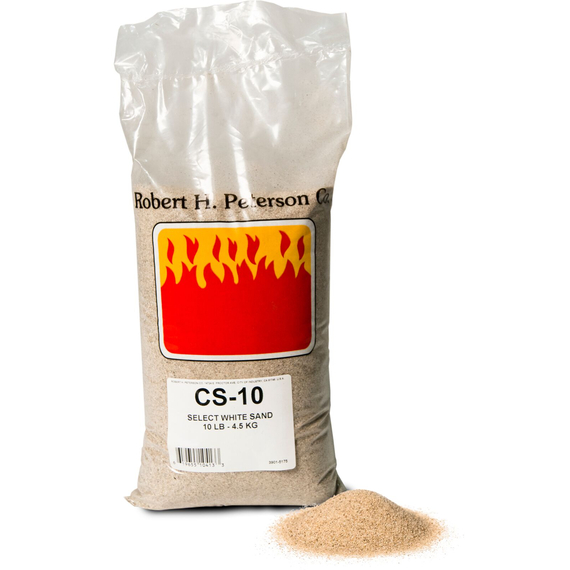

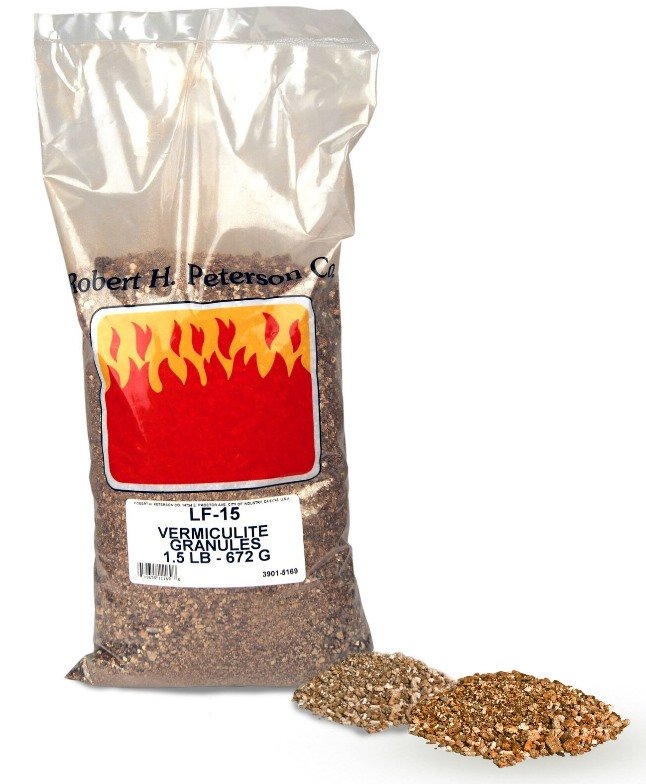

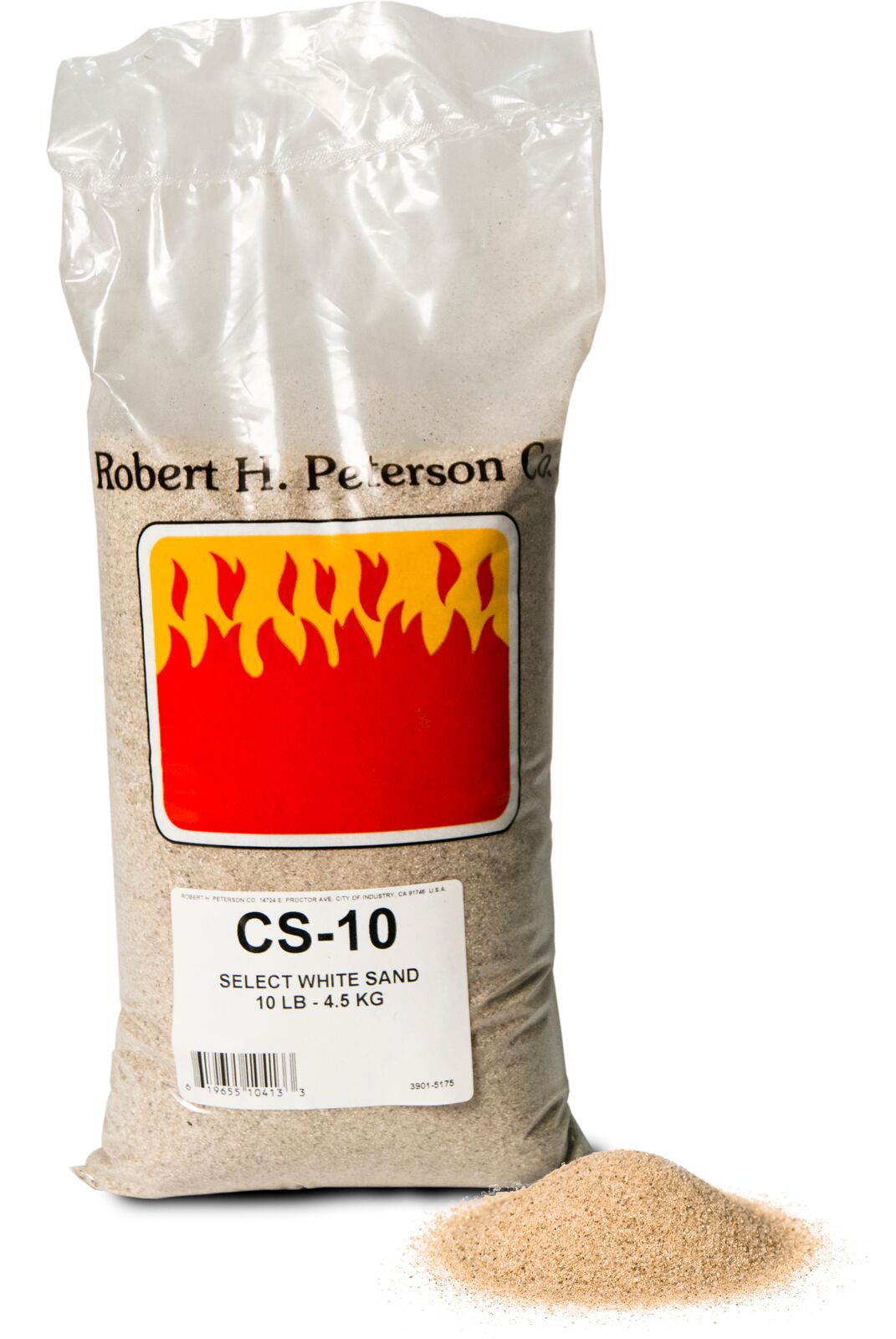

- Sand (NG) or Vermiculite (LP)
- Burner Stabilizing Clips
- Flex Connector Kit
- Damper Clamp.
Specifications:
- Fuel Type: Natural Gas or Liquid Propane
- Log Set Type: Vented Indoor
- Log Style: Rustic Oak Designer
- Available Widths: 16", 18", 24", and 30"
- Number of Logs: 6-7 Logs (varies by size)
- Material: Refractory Ceramic | Steel Rod Reinforced
- Burner Type: G4 Glowing Ember Burner System
- Ignition Options: SPK-26 (P) Low Profile Safety Pilot System, APK-11(M)(P) Automatic Safety Pilot System, APK-15(M)(P) Automatic Safety Pilot System, APK-17(M)(P) Low Profile Automatic Safety Pilot System and EPK-2(M)(P) Automatic Remote Lighting Safety Pilot System.
Downloads:
- Real Fyre Vented Gas Logs Brochure
- Rustic Oak Designer Log Placement
- G4 Burner Manual
- SPK-26 (P) Low Profile Safety Pilot System Owners Manual
- APK-11(M)(P) Automatic Safety Pilot System
- APK-15(M)(P) Automatic Safety Pilot System
- APK-17(M)(P) Low Profile Automatic Safety Pilot System
- EPK-2(M)(P) Automatic Remote Lighting Safety Pilot System
- Product Warranty

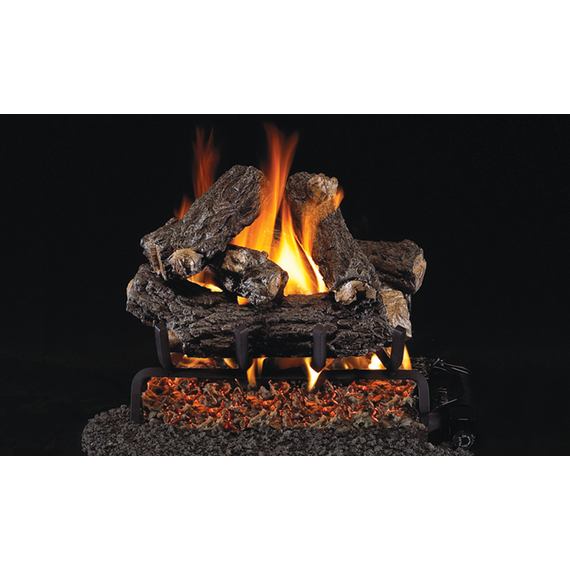

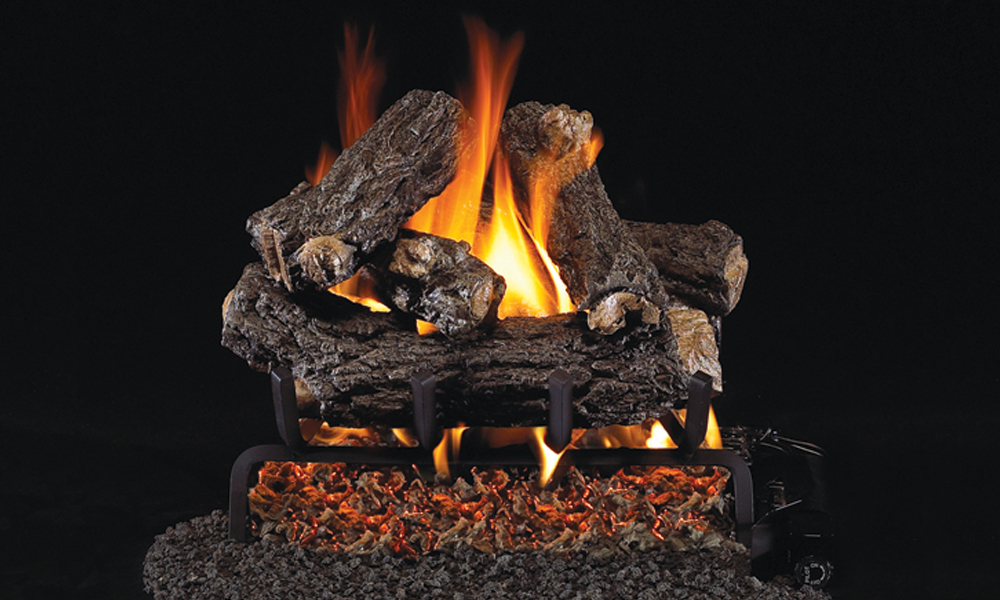

RealFyre 16" Rustic Oak Designer Reduced Depth Vented Gas Log Set with G4 Burner System
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Rustic Oak Designer
- Log Set Width: 16 Inch
- Number of Logs: 6 Pieces
- Material: Refractory Ceramic | Steel Rod Reinforced
- Burner Type: G4-Burner
- Ignition Type: SPK-26 (P) Low Profile Safety Pilot System, APK-11(M)(P) Automatic Safety Pilot System, APK-15(M)(P) Automatic Safety Pilot System, APK-17(M)(P) Low Profile Automatic Safety Pilot System and EPK-2(M)(P) Automatic Remote Lighting Safety Pilot System.
- BTU: 39k BTU (NG) and 39k BTU (LP)
- Burner Dimension: 26" W x 11" D x 17" H
RealFyre 18" Rustic Oak Designer Reduced Depth Vented Gas Log Set with G4 Burner System
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Rustic Oak Designer
- Log Set Width: 18 Inch
- Number of Logs: 6 Pieces
- Material: Refractory Ceramic | Steel Rod Reinforced
- Burner Type: G4-Burner
- Ignition Type: SPK-26 (P) Low Profile Safety Pilot System, APK-11(M)(P) Automatic Safety Pilot System, APK-15(M)(P) Automatic Safety Pilot System, APK-17(M)(P) Low Profile Automatic Safety Pilot System and EPK-2(M)(P) Automatic Remote Lighting Safety Pilot System.
- BTU: 75k BTU (NG) and 50k BTU (LP)
- Burner Dimension: 29" W x 13" D x 17" H
RealFyre 24" Rustic Oak Designer Reduced Depth Vented Gas Log Set with G4 Burner System
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Rustic Oak Designer
- Log Set Width: 24 Inch
- Number of Logs: 7 Pieces
- Material: Refractory Ceramic | Steel Rod Reinforced
- Burner Type: G4-Burner
- Ignition Type: SPK-26 (P) Low Profile Safety Pilot System, APK-11(M)(P) Automatic Safety Pilot System, APK-15(M)(P) Automatic Safety Pilot System, APK-17(M)(P) Low Profile Automatic Safety Pilot System and EPK-2(M)(P) Automatic Remote Lighting Safety Pilot System.
- BTU: 90k BTU (NG) and 65k BTU (LP)
- Burner Dimension: 34" W x 13" D x 17" H
RealFyre 30" Rustic Oak Designer Reduced Depth Vented Gas Log Set with G4 Burner System
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Rustic Oak Designer
- Log Set Width: 30 Inch
- Number of Logs: 7 Pieces
- Material: Refractory Ceramic | Steel Rod Reinforced
- Burner Type: G4-Burner
- Ignition Type: SPK-26 (P) Low Profile Safety Pilot System, APK-11(M)(P) Automatic Safety Pilot System, APK-15(M)(P) Automatic Safety Pilot System, APK-17(M)(P) Low Profile Automatic Safety Pilot System and EPK-2(M)(P) Automatic Remote Lighting Safety Pilot System.
- BTU: 90k BTU (NG) and 65k BTU (LP)
- Burner Dimension: 39" W x 14" D x 17" H
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
