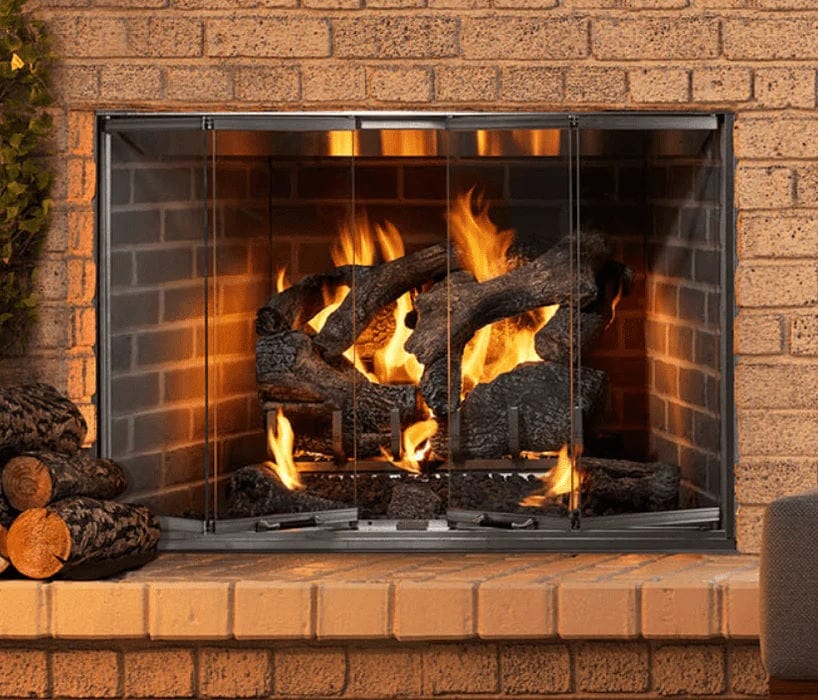

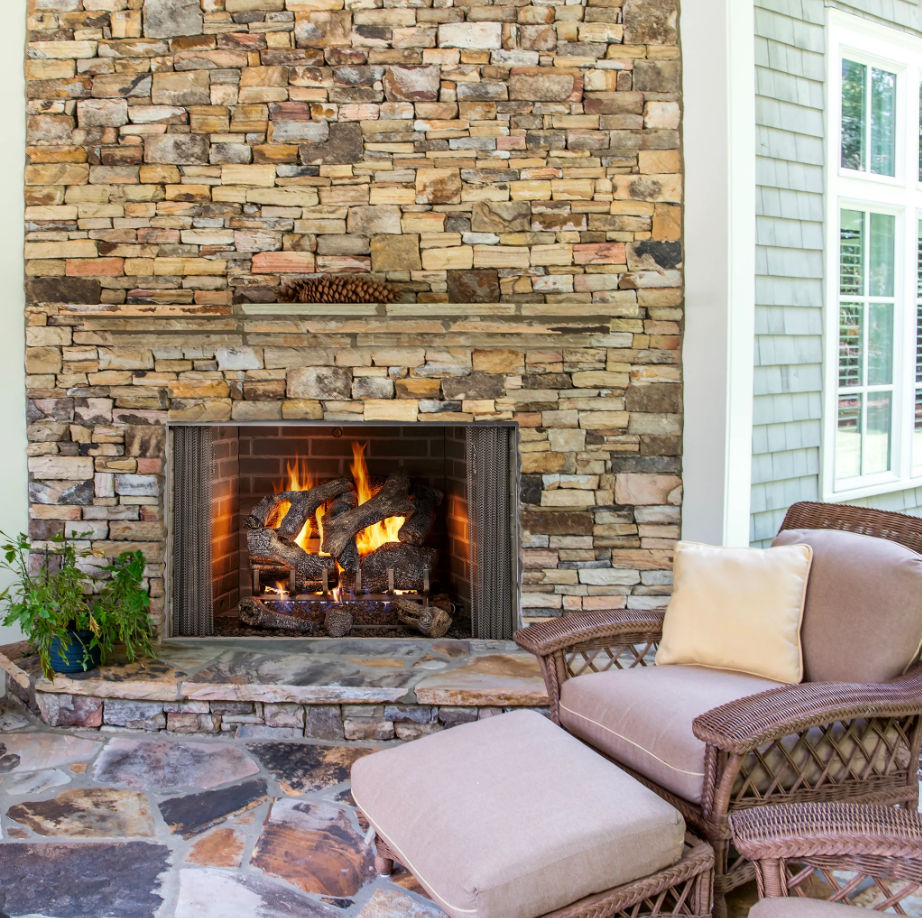

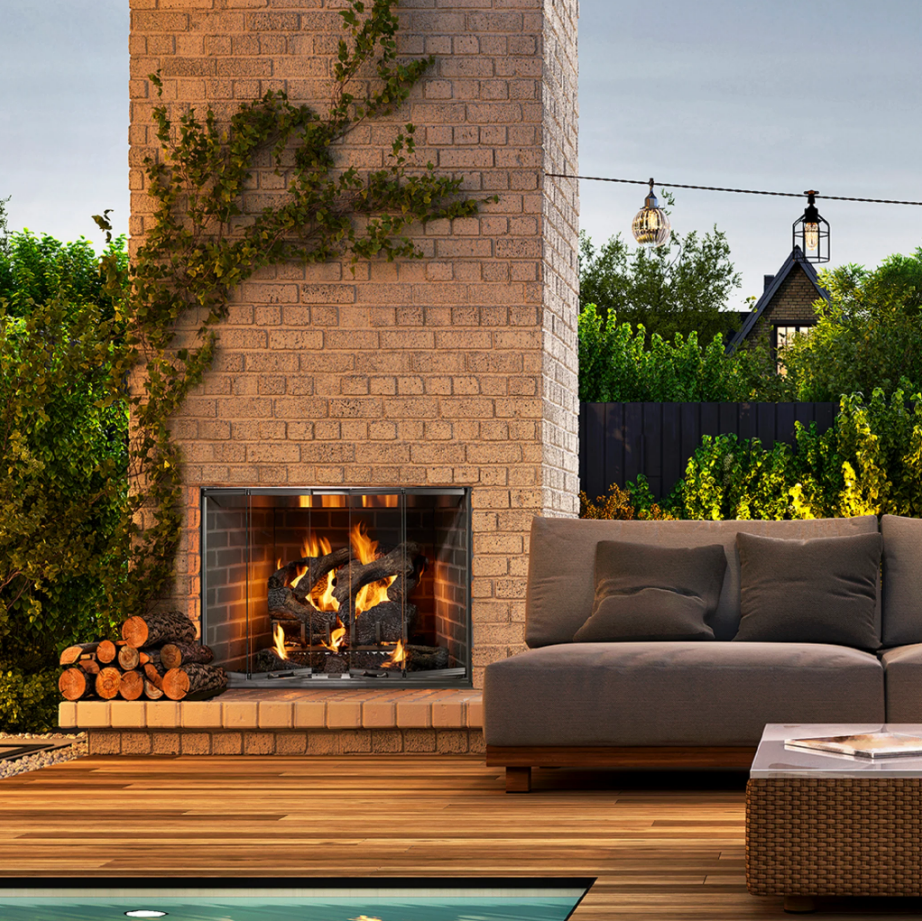

HHT Outdoor Lifestyle Cottagewood 36" Outdoor Wood Fireplace
The Outdoor Lifestyle Cottagewood 36" Outdoor Wood Fireplace - ODCTGWD-36 is a great addition to your outdoor living space. Imagine evenings with the warm glow and comforting crackle of a fire. This fireplace creates a welcoming space for relaxing or gathering with family and friends.
The Cottagewood has a large viewing area of 36" x 28 1/2" and a custom masonry look. It includes tuckaway stainless steel screens for an open view of the flames or to keep sparks contained. The black grate and stainless steel facings enhance its timeless design, adding both style and practicality to your backyard or patio.
The zero-clearance installation offers flexibility and blends easily with your flooring for a cohesive appearance. It is safe to use on wood or composite decks when paired with a 20" protective hearth apron. The fireplace also includes an easy damper control for managing airflow and smoke, which is especially convenient for enclosed patios.
Additional features include an outside air kit, dual gas knockouts, stainless steel safety screens, and a UL/ULC listing for safety compliance. The model is designed to accommodate logs up to 19" and uses an 11" SL1100 Series chimney system. Framing dimensions are 45-1/2" w x 59-3/4" h x 28" d, and the unit weighs 360 pounds.
The Outdoor Lifestyle Cottagewood 36" Outdoor Wood Fireplace brings warmth and style to your outdoor space. Its thoughtful design and quality features make it a great choice for enhancing your outdoor living area.
Features:
- 36" or 42" Wide Openings
- Tuckaway Stainless Steel Screens for Open View of Flames or to Keep Sparks In
- Easy Damper Control for Airflow/Smoke Control on Enclosed Patios
- Safe on a Wood or Composite Deck with a 20" Protective Hearth Apron

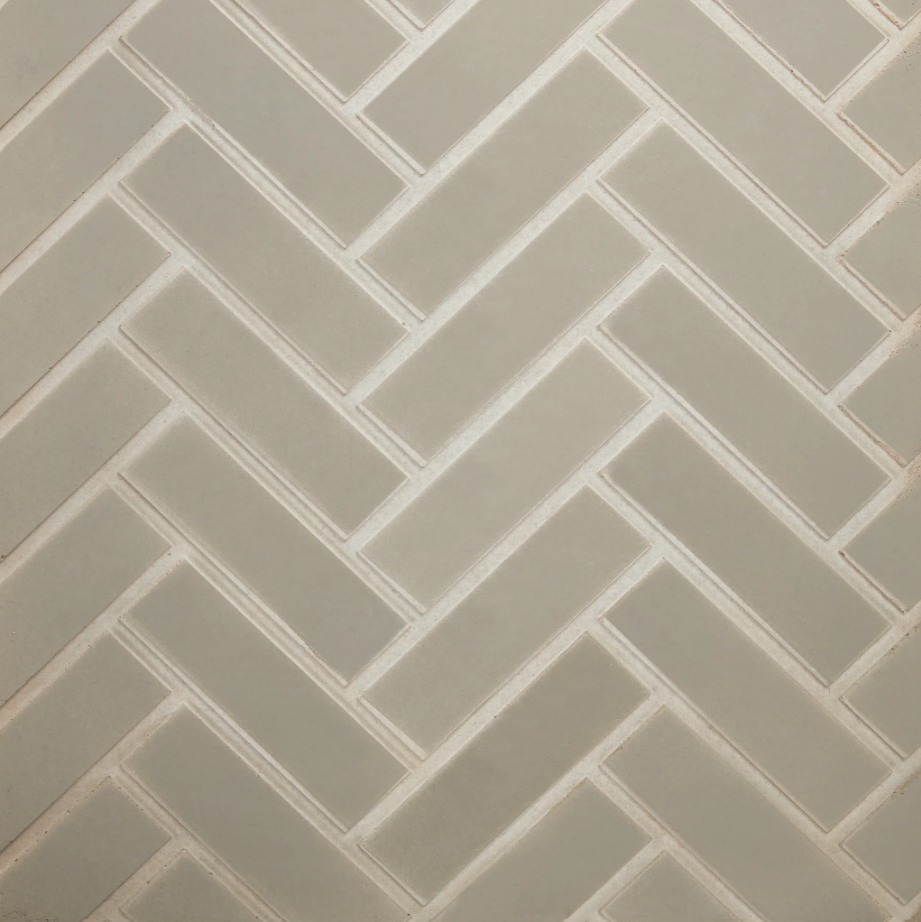

- Mineral Gray Traditional or Herringbone Brick Interior Panels
- Black Painted Grate Keeps Logs in Place and Burns More Efficiently
- Place Freestanding or Next To An Exterior Wall
INCLUDES:

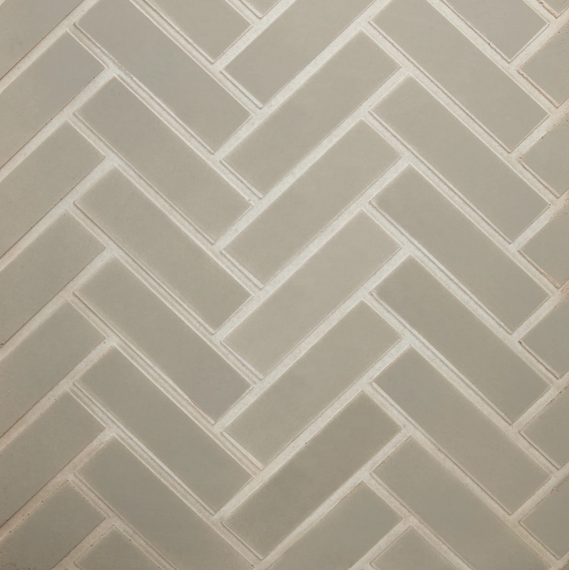

- Mineral Gray Traditional or Herringbone Refractory Liners
- Outside Air Kit
- Dual Gas Knockouts
- Black Grate
- Convenient Damper Control
- Stainless Steel Facings
- Viewing Area: 36" x 28 1/2"
- Stainless Steel Safety Screens
- UL/ULC Listed
Specifications:
- Actual Dimensions: 44-1/2" W (front), 28-5/8" W (back) x 59-1/4" H x 27-1/2" D
- Framing Dimensions: 45-1/2" W (front and back) x 59-3/4" H x 28" D
- Firebox Opening: 36" x 28-1/2"
VENTING NOTES:
- Requires SL1100 Series Chimney. See Venting Section.

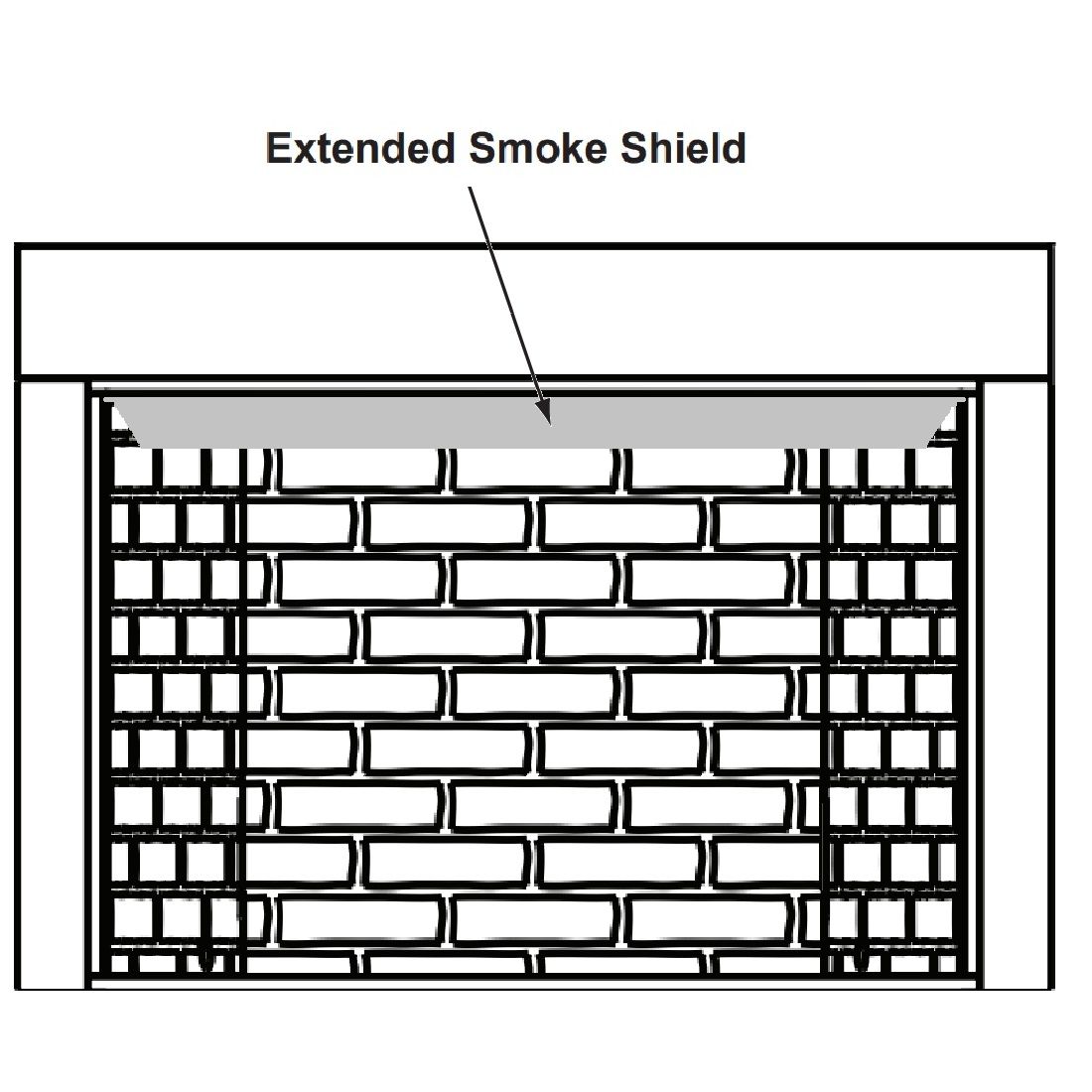

- Extended Smoke Shield in the ODCTGWD-FSK (36/42) is for Freestanding Fireplace Installs and Reduces Min Vent Height to 9.5'. See Install Manual for All Requirements.

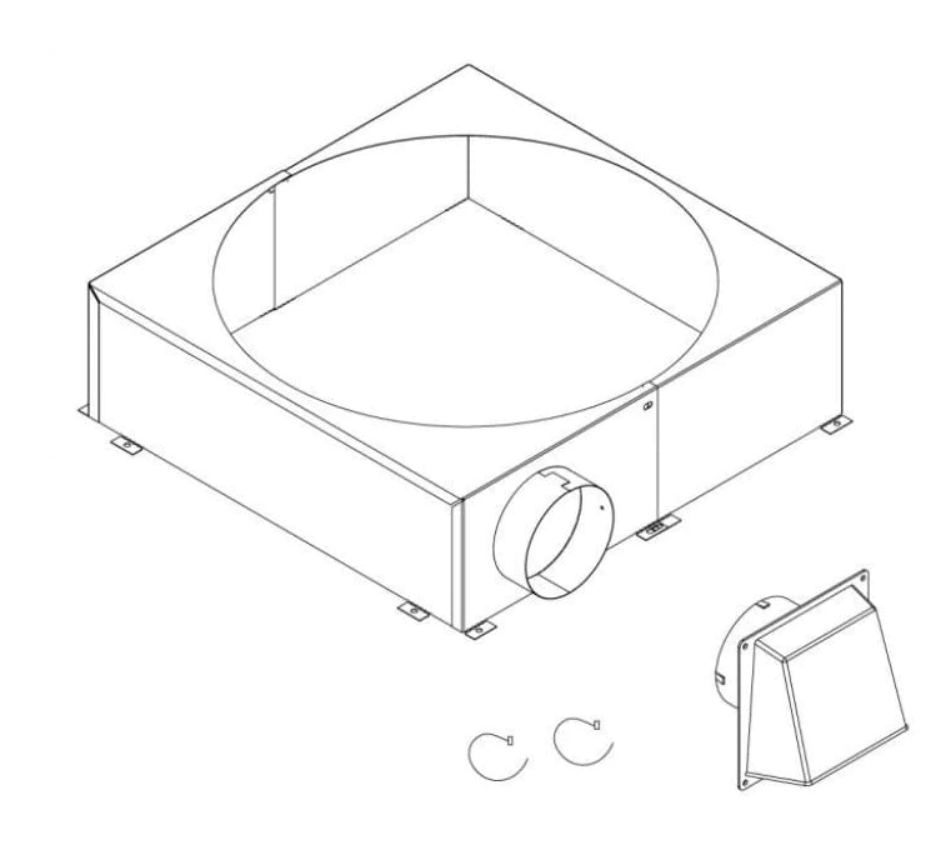

- Canada Uses SL400 Series Chimney and Requires SLA-10 and CAK5A
Downloads:
Technical Specifications:

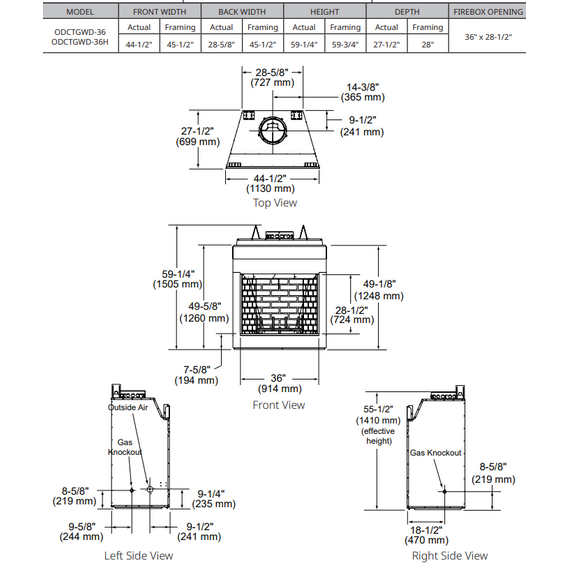

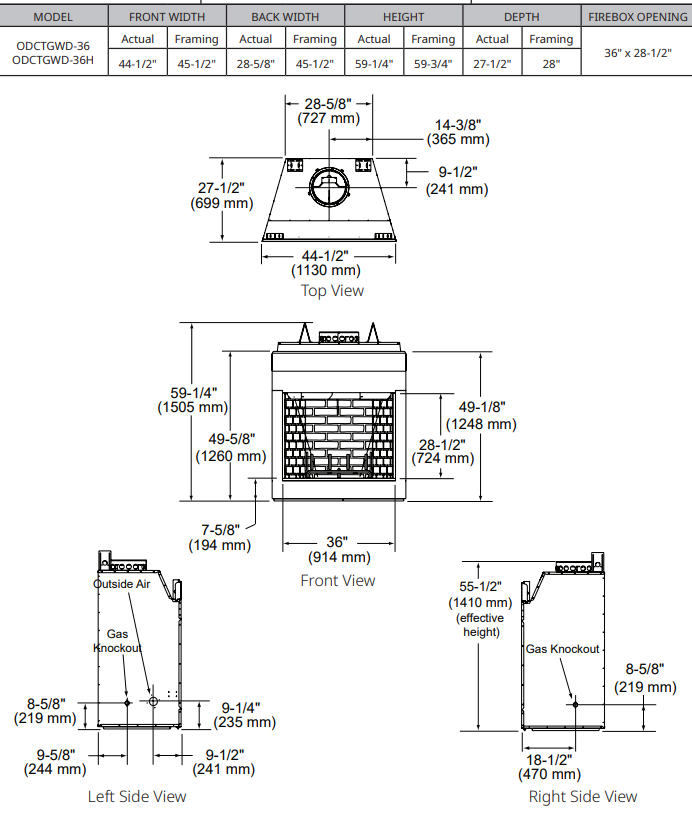

A. Product Dimension
- Model: ODCTGWD-36 / ODCTGWD-36H
- Front Width:
- Actual: 44-1/2"
- Framing: 45-1/2"
- Back Width:
- Actual: 28-5/8"
- Framing: 45-1/2"
- Height:
- Actual: 59-1/4"
- Framing: 59-3/4"
- Depth:
- Actual: 27-1/2"
- Framing: 28"
- Firebox Opening: 36" x 28-1/2"
B. Appliance Certification:
- Tested and listed according to UL 127 and CAN/ULC-S610 standards by Underwriters Laboratories Inc. for installation and operation in the US and Canada.
- Installation notes:
- Can be installed in sleeping rooms except in manufactured homes.
- If using a gas log set, provisions for the National Fuel Gas Code must be met.
- Tested and listed for use with optional components specified in the manual:
- Optional components can be purchased separately and installed later.
- Installing an outside air kit later requires significant reconstruction and is best installed at the time of the initial fireplace installation.
- Trademark: Outdoor Lifestyles® is a registered trademark of Hearth & Home Technologies.
- Warning! Risk of Fire
- For use with solid wood fuel only.
- Other fuels may overfire and generate poisonous gases (e.g., carbon monoxide).

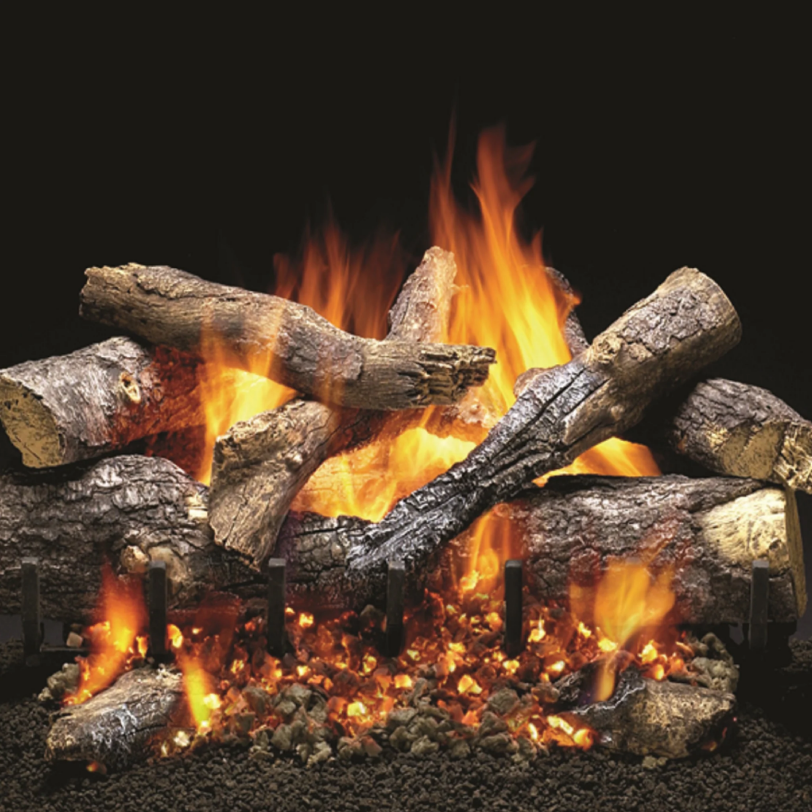

C. Vented Gas Log Sets, Unvented Gas Log Sets, Gas or Wood Inserts, and Gas Log Lighters
- Optional:
- Gas log sets, gas or wood inserts, or gas log lighters can be installed in this fireplace.
- Follow the instructions provided with the accessory for operation.
Unvented Gas Logs
- Caution:
- If installed, the gas appliance must only be operated with the fireplace glass door fully open (if included).
- Only unvented gas log sets complying with ANSI Z21.11.2 standards for unvented room heaters should be installed.
- Additional requirements:
- The unvented gas appliance must incorporate an automatic shutoff device.
- Must be installed per the National Fuel Gas Code Z223.1, Latest Edition.
- Warning!
- Do not operate an unvented gas log set in this fireplace with the chimney removed.
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
