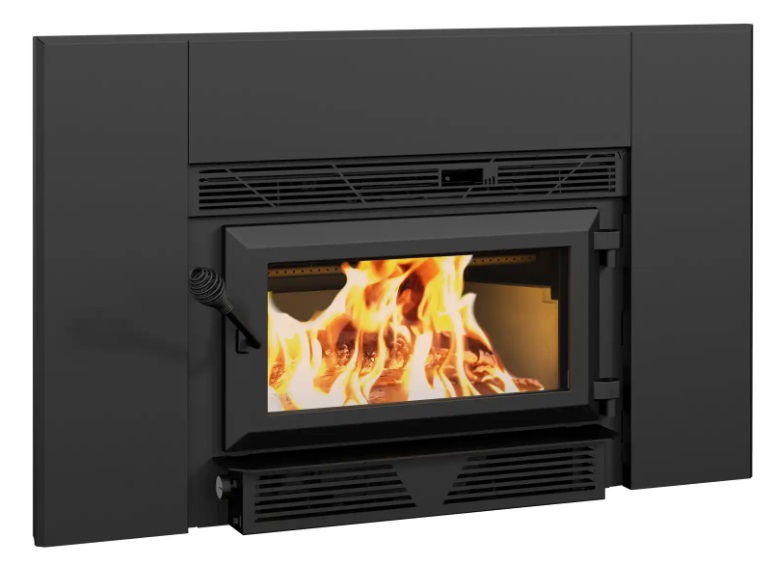

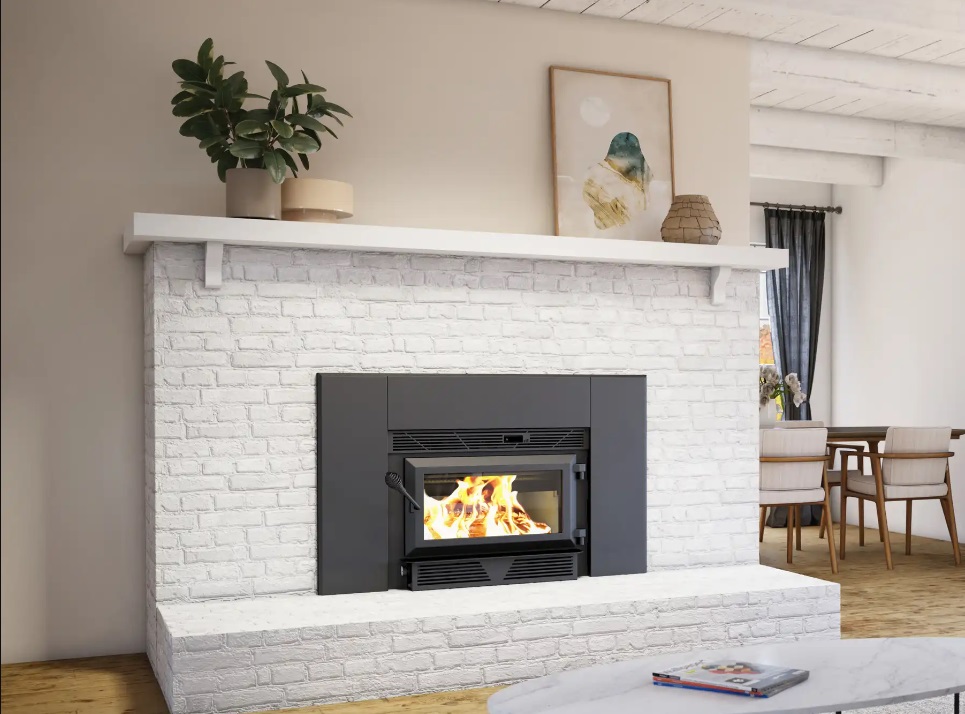

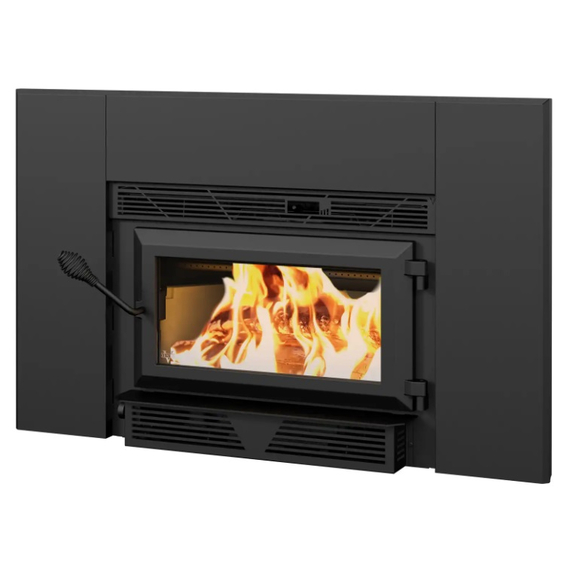

Ventis HEI90 Wood Fireplace Insert - 45,000 BTU
Introducing the Ventis 25 Inches HEI90 Wood Fireplace Insert, the pinnacle of opulence and inventiveness united. Immerse yourself in the lavish embrace of its radiant warmth, as this extraordinary fireplace insert effortlessly nestles into even the most compact hearth, magically transforming any space into a sanctuary of supreme comfort and serenity.
Equipped with an elite 90 CFM blower, the HEI90 ensures the efficient spreading of cozy heat throughout your living area. Powered by cutting-edge non-catalytic combustion technology, this insert proudly presents an awe-inspiring 7-hour maximum burn time and an unparalleled efficiency of 82%, resulting in an enduring stream of warmth and impressive fuel conservation.
Exuding unparalleled versatility, the HEI90 effortlessly accommodates majestic logs measuring up to 17 inches, while steadfastly fitting flue sizes of 6 inches, with the utmost flue height requirement of 12 ft. Encapsulate an experience of unparalleled sophistication, convenience, and grandeur with the Ventis HEI90 Wood Fireplace Insert reigning supreme as the centerpiece that graces your regal abode.
- Small size wood insert
- EPA certified at only 1.5 g/h
- Solidity and manufacturing quality
- C-Cast heat shield added to the firestop
- Non-catalytic combustion technology
- Installation authorized on the Island of Montreal
- Cast iron door
- 144 CFM blower
Required option:
- Choose one faceplate to complete this unit. Not Included, Sold Separately.
- Regular faceplate (VBA1545).
Product Specifications:
| Color: | Black |
| Fuel Type: | Dry cordwood (16" recommended) |
| Combustion Technology: | Non-catalytic |
| Recommended Heating Area: | 250 - 1,200 ft² |
| Overall Firebox Volume: | 1.1 ft³ |
| Maximum Burn Time: | 7 Hours |
| EPA Loading Volume: | 1.03 ft³ |
| Maximum Heat Output-Dry Cordwood: | 45,000 BTU/h |
| Minimum Overall Heat Output Rate: | 8,471 BTU/h (2.48 kW) |
| Maximum Overall Heat Output Rate: | 31,700 BTU/h (9.29 kW) |
| Average Efficiency-Dry Cordwood (HHV): | 75 % |
| Average Efficiency-Dry Cordwood (LHV): | 80 % |
| Optimum Efficiency: | 82 % |
| Optimum Heat Transfer Efficiency: | 78 % |
| Average Particulate Emission Rate: | 1.5 g/h |
| Average CO: | 34 g/h |
| Maximum Log Length: | 17" |
| Recommended Log Length: | 16" |
| Log Positioning: | Over width |
| Flue Spigot Diameter: | 6" |
| Door Opening Dimensions (W x H): | 18 1/4" x 7 7/8" |
| Firebox Dimensions (W x D): | 16 3/4" x 12 3/8" |
| Firebox Volume: | 1.65 ft³ |
| Glass Viewing Area (W x H): | 17 7/8" x 8" |
| Glass Type: | Ceramic glass |
| Door Type: | Single, glass with cast iron frame |
Eligible for the 30% Tax Credit Program:
-
- Beginning in 2023 through December 31, 2032, consumers buying highly efficient wood or pellet stoves or larger residential biomass heating systems may be eligible to claim a 30% tax credit that is capped at $2,000 annually and is based on the full cost (purchase and installation) of the unit.
- This new 30 percent tax credit is available for appliances installed between January 1, 2023, and December 31, 2032.
- Customers will claim their tax credit when they file their taxes on IRS form 5695 under “Residential Energy Efficient Property Credit “. They will need their purchase receipt (showing the cost of the product and installation).
- Customers will also need the manufacturer certificate stating that the stove qualifies for the credit and is at least 75 percent efficient HHV.
- The credit applies to qualifying wood and pellet stoves and, unfortunately, not to gas stoves.
- People who have zero tax liability may not qualify for the tax credit. It's recommended to consult a qualified tax professional to determine if the customer is eligible to take advantage of this tax credit.
Downloads:
The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. It applies to normal residential use only and is void if the unit is used to burn material other than cordwood or not operated according to the owner's manual.
Damages caused by misuse, abuse, improper installation, lack of maintenance, over ¬ring, negligence or accident during transportation, power failures, downdrafts, venting problems or underestimated heating area are not covered.
Any defect or damage caused by the use of unauthorized or other than the original parts voids this warranty.
This warranty requires defective products to be returned or sent to the manufacturer for investigation, with transportation fees paid by the manufacturer.
All parts and labour costs covered by this warranty are limited, and the manufacturer may decide to repair or replace any part or unit after inspection and investigation. A one-time replacement limit applies to all parts.
| Warranty Application |
| Description | Parts | Labour |
| Combustion chamber (welds only) and cast iron door frame. | Lifetime | 3 Years |
| Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), plating (defective manufacturer), and convector air-mate. | Lifetime | S.O. |
| Removable stainless steel combustion chamber components, secondary air tubes, deflectors, and supports. | 7 Years | N/A |
| Glass retainers, handle assembly, and air control mechanism. | 5 Years | 3 Years |
| Carbon steel combustion chamber components, vermiculite baffle, and C-Cast baffle. | 5 Years | N/A |
| Standard blower, heat sensors, switches, rheostat, wiring, and other controls. | 2 Years | 1 Years |
| Optional blower, paint (peeling), ceramic glass (thermal breakage only), ceramic fibre blankets, gaskets, insulations and other options. | 1 Years | N/A |
| Firebricks. | N/A | N/A |
| All parts replaced under the warranty. | 90 Days | N/A |
Labour cost and repair work must not exceed wholesale price, contact VENTIS dealer if defective. Contact VENTIS dealer to expedite warranty claim processing.
