Hargrove Sierra Short Stack Gas Logs With Pinnacle Burner

The Pinnacle Burner that comes with the Hargrove Sierra Short Stack Vented Gas Log Set with Burner Kit is made to go well with the logs' authentic appearance. This burner's precise engineering produces a steady, realistic-looking flame pattern that improves the atmosphere of your fireplace as a whole.

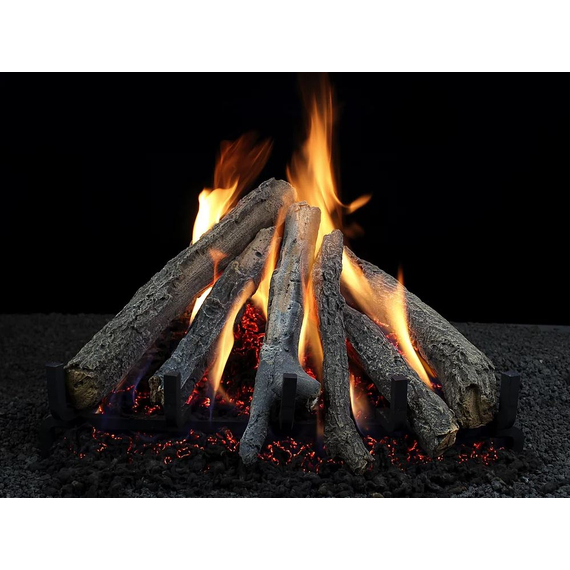

Let's examine the logs themselves now. Because of a unique molding technique, the Sierra Short Stack logs have a realistic texture that resembles real wood. Every log is meticulously painted by hand, guaranteeing that no two are the same. This finely crafted interior design enhances the warmth and coziness of the logs while adding to their authenticity.

The remarkable realism and great quality of the Hargrove Sierra Short Stack Vented Gas Log Set with Burner Kit are sure to impress, whether you're building a new gas fireplace or updating an old one.

Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.

Burner:

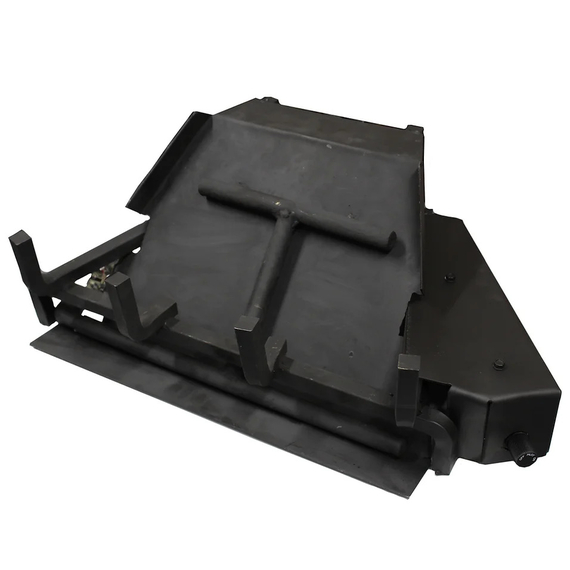

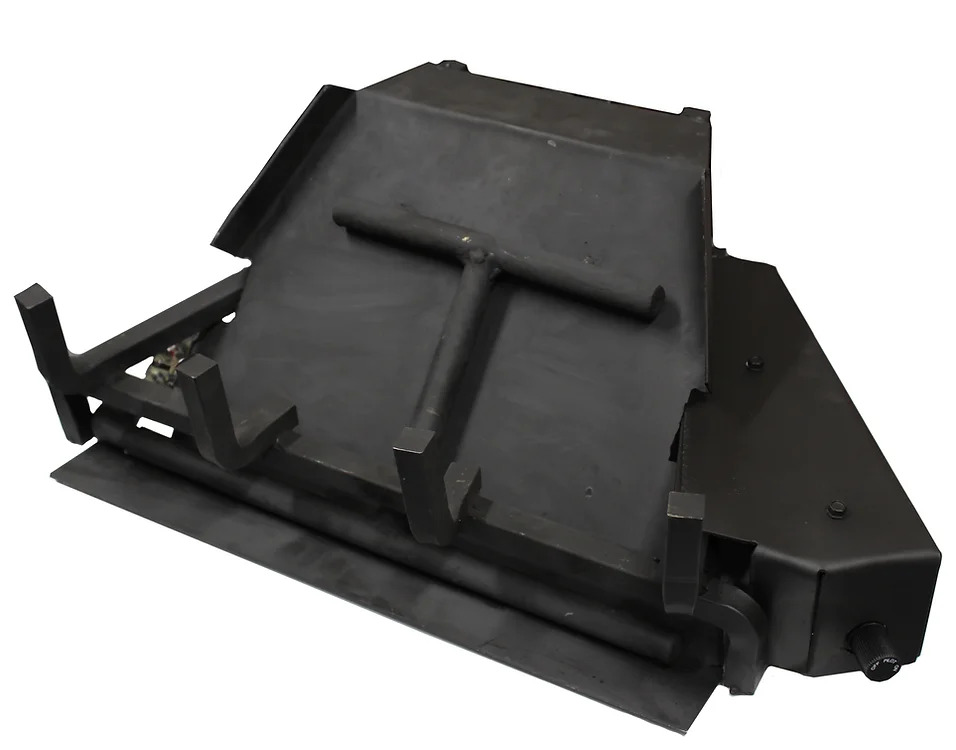

Pinnacle Burner- a versatile option for your fire pit, available in 12", 18", 24", and 30” sizes to suit various dimensions. Its two-level design creates a captivating flame effect without the need for sand, offering a unique visual experience. This burner is specifically recommended for Pinnacle Series Rumford logs, ensuring a perfect match for optimal performance and a stunning flame pattern.

Features:

• Available in four different sizes including 12", 18", 24", 30"
• Available as a natural gas or propane burning log set for indoor vented fireboxes only
• Carefully hand-painted logs showcase a variety of colors for a more natural look.
• The molding process creates natural wood textures derived from real logs
• To ensure years of enjoyment the materials are guaranteed to withstand high temperatures
• Made from refractory concrete
• Even after the fire is shut off, the logs radiate warmth as they slowly cool (much like a real wood fire dying down).
• Steel H burner comes complete with sand or vermiculite (depending on fuel type), volcanic cinders and glowing embers to create a real ember bed look
• Burner distributes up to a MAX 38,000 BTUs with the larger sizes.
• Ignition control options include:
  • Manual On/Off Standing Safety Pilot with a manual variable flame knob control and a cool mount kit that allows the valve to be mounted on the side of the firebox

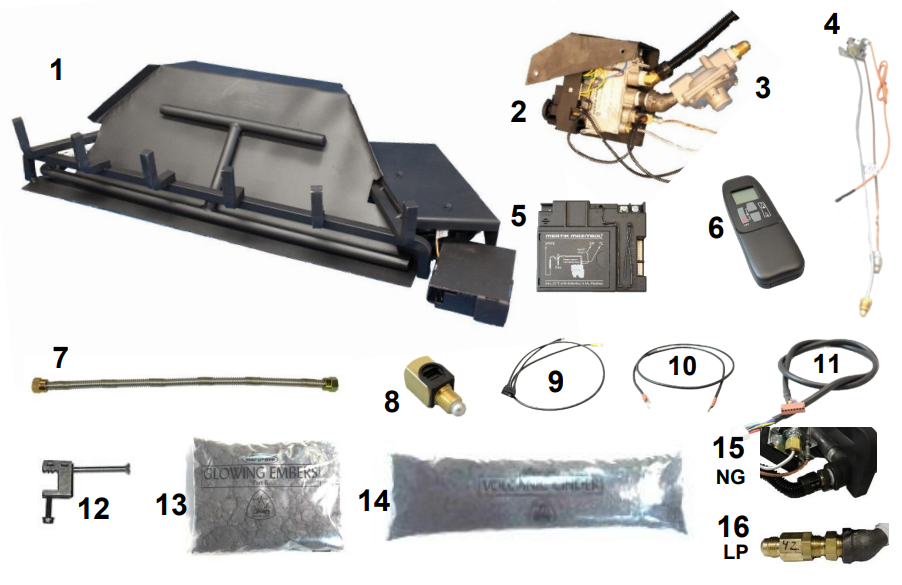

  • Electronic, Non-Standing Pilot with Remote Control (CNHB3X5) includes a concealer control cover to hide all components underneath the burner

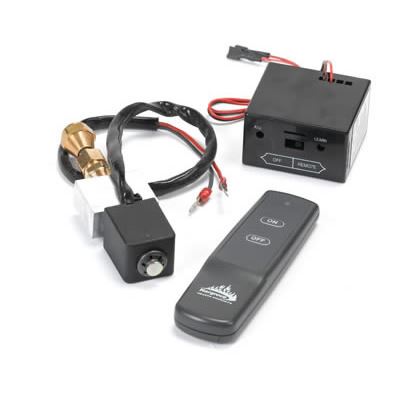

• Remote Control options:
  • On/Off Remote Control (AF-LCK)

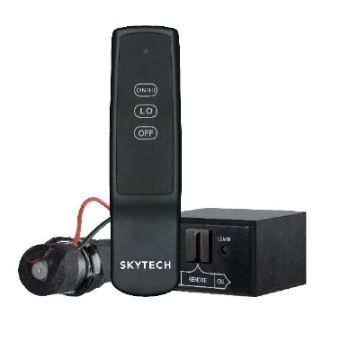

  • Variable Flame Height Remote Control (AF-SCK)
• Certified for RGA-2-72, ANSI Z21.84, and PFS!

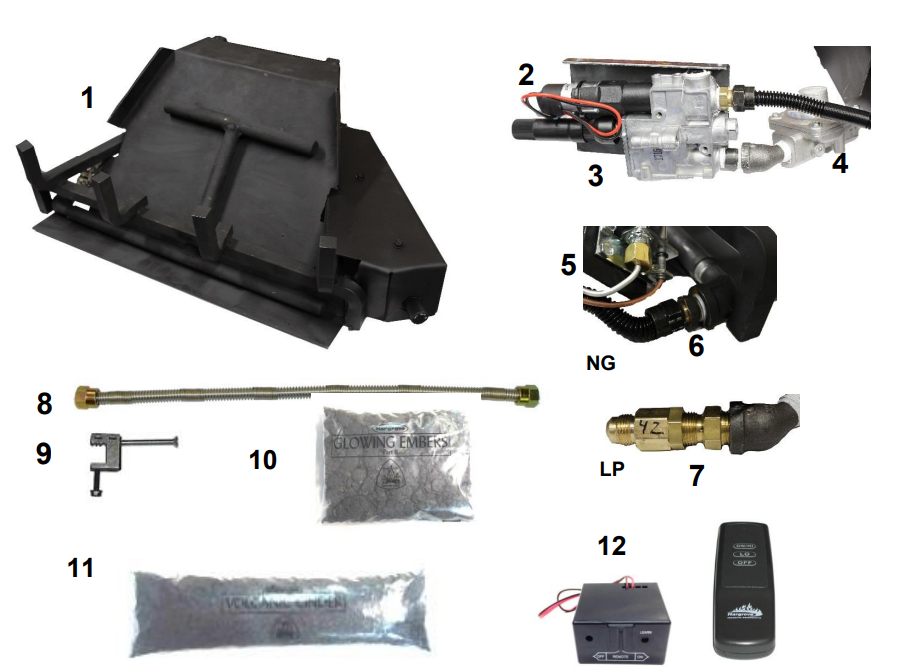

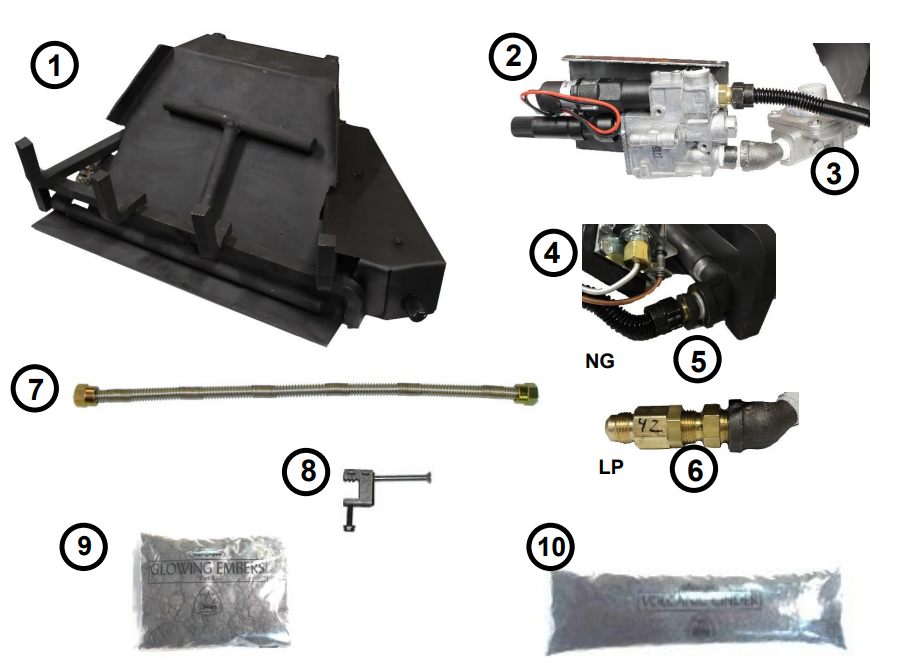

Includes:

• Logs
• Burner Pan
• Valve with Pilot Assembly
• Embers
• Vermiculite (for liquid propane)
• Volcanic Cinders
• Connector

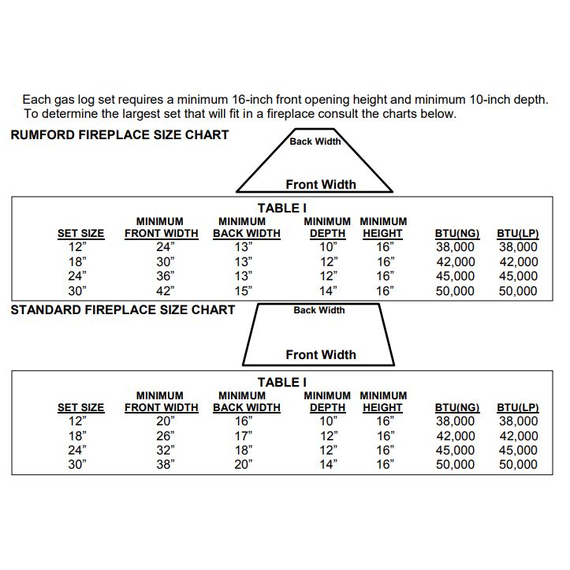

Specifications:

• Fuel Type: Natural Gas or Liquid Propane
• Log Set Type: Vented Indoor
• Log Style: Sierra Short Stack

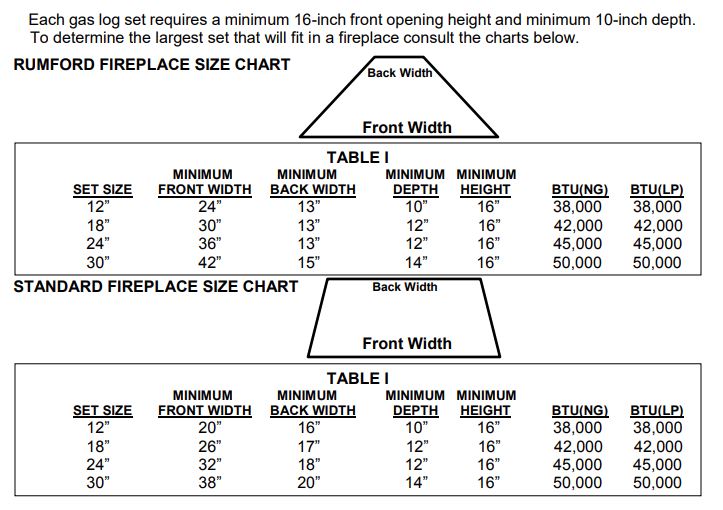

• Available Widths: 12 - 30 Inches
• Number of Logs: 4–7 logs (varies by size)
• Material: Refractory Concrete
• Burner Type: Pinnacle Burner (16-Gauge Steel)
• Ignition Options: Safety Pilot, Variable Flame with Remote and Electronic Ignition.

Downloads:

• Pinnacle Series Brochure
• Sierra Short Stack Log Diagram
• Pinnacle Burner with Safety Pilot Manual
• Pinnacle Burner with Variable Flame and Remote Manual
• Pinnacle Burner with Electronic Ignition
• Product Warranty
