Hargrove Rustic Timbers Vented Log Set With See-Thru Burner

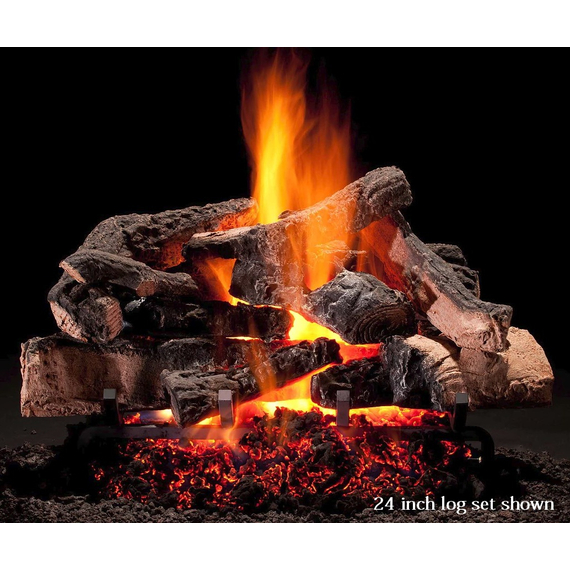

The Hargrove Rustic Timbers Vented See-Thru Log Set with Burner Kit is an excellent option if you’re looking for a realistic and efficient fireplace setup. It comes with the See-Thru Burner, which has an S-shaped design, and you can choose sizes ranging from 18 to 48 inches depending on your space. The logs themselves are part of the Rustic Timbers line, which look like split wood and charred logs—like a mature, glowing fire. They come in sizes from 21 to 36 inches and are available in single-sided or see-through configurations.

It’s also part of their Radiant Heat series, so it uses a ceramic fiber material and something called Radiant Riser technology to push the heat forward, making it a lot more efficient for warming up your room. This one works with several burner options—E-Burner, H-Burner, Hidden Controls, and System 4—and it’s available for both natural gas and propane setups.
Overall, it’s versatile and efficient while still giving you that realistic fire look.

BURNER:

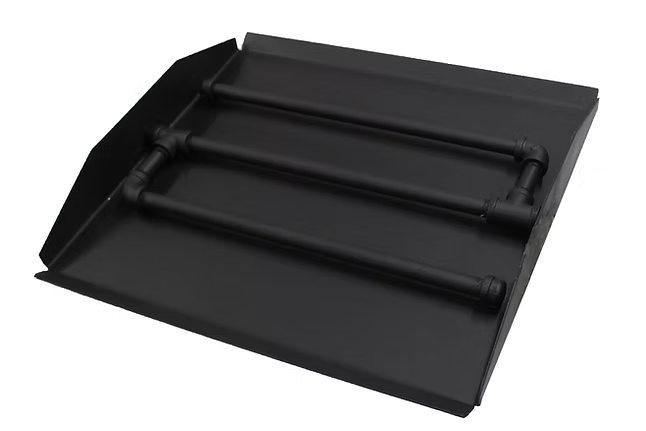

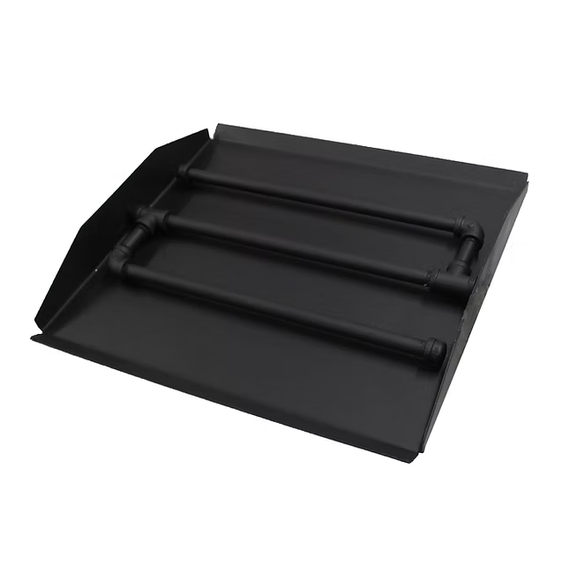

See-Thru- available in 18” to 48” sizes, features an S-shaped design for even heat and flame distribution. It's ideal for Fresh Cut, Char, and Radiant Heat Series logs.

CONTROL SYSTEM:

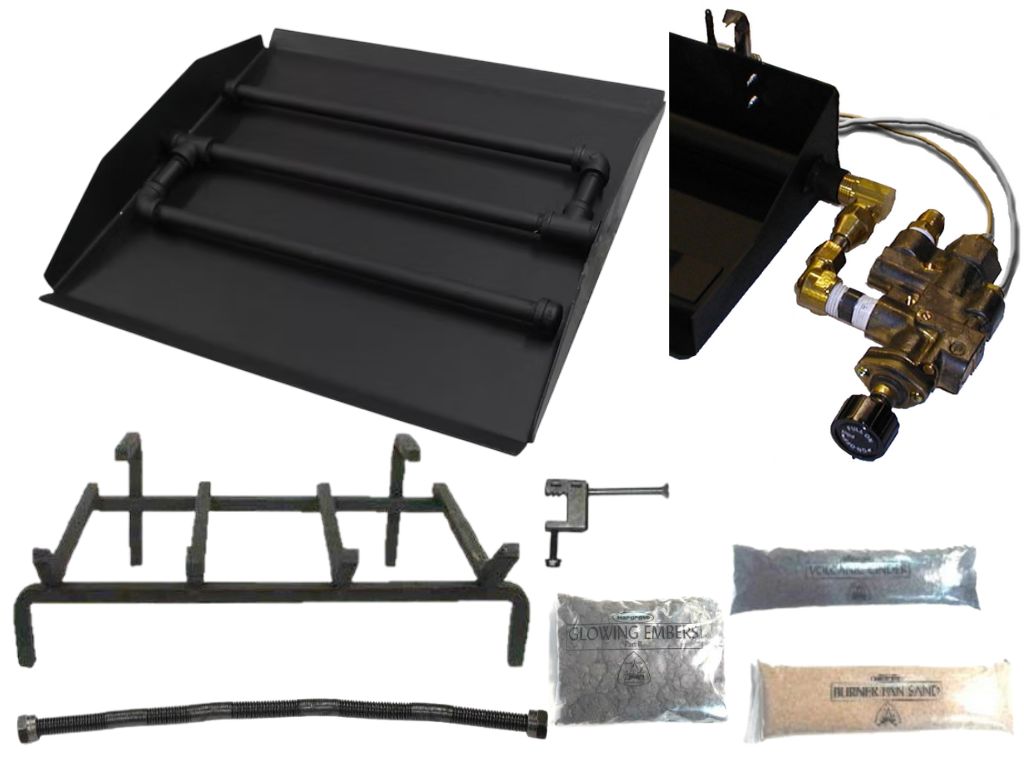

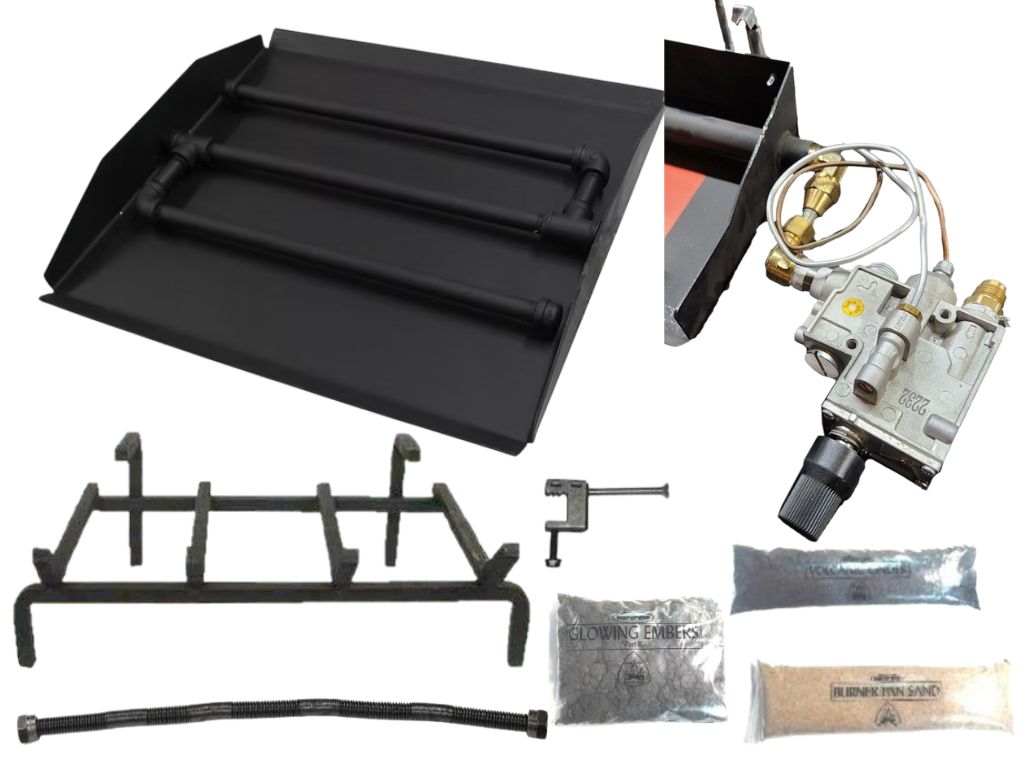

• Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.
• Latchtap with Remote Control- This one's neat because it combines the manual safety pilot with a remote control kit. You can use the remote to turn the burner on and off and adjust the flame with the knob. Like the others, it's compatible with both natural gas and liquid propane, with a conversion kit required for propane.

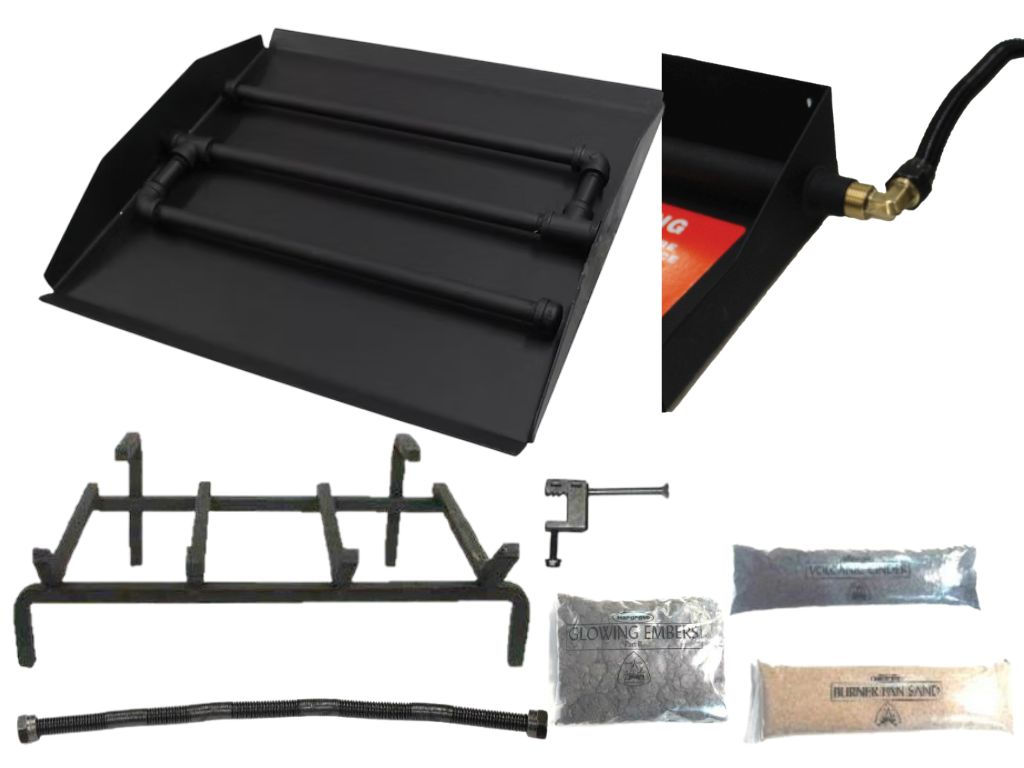

• Manual Valve with Knob- This one's pretty straightforward. You've got a knob that you turn to manually light the main burner using a match or a long lighter. Just keep in mind, that it's only for natural gas. If you're thinking of using liquid propane, you'll need to add a safety pilot and a conversion kit.

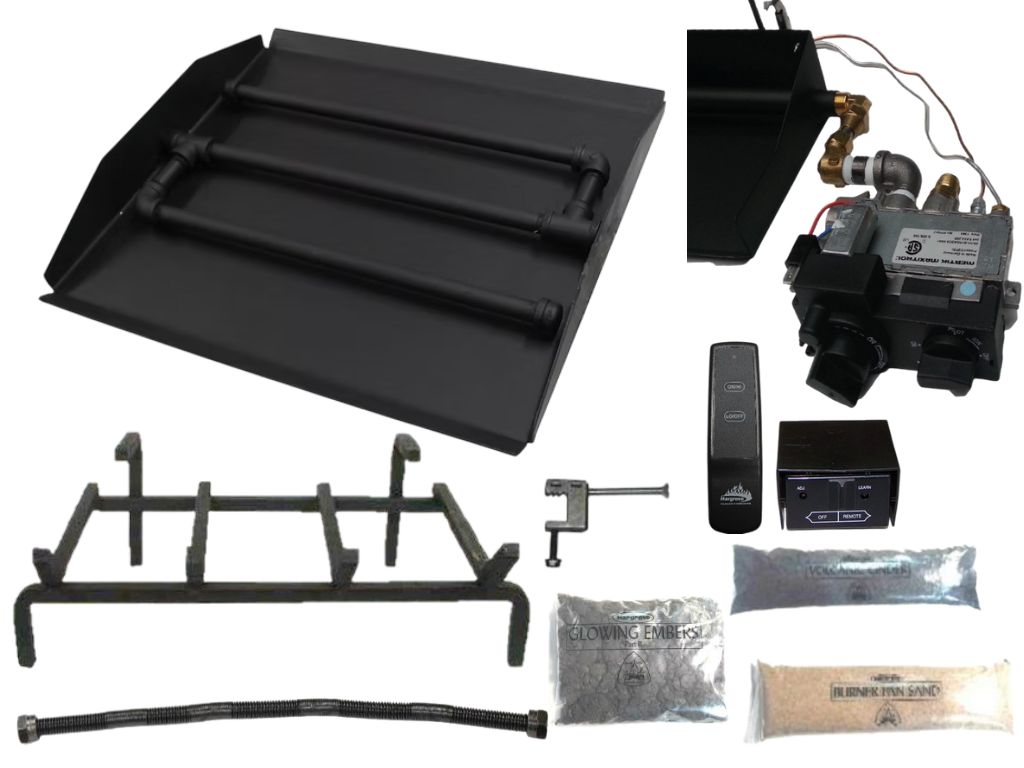

• Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you not only turn the burner on and off remotely but also adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.

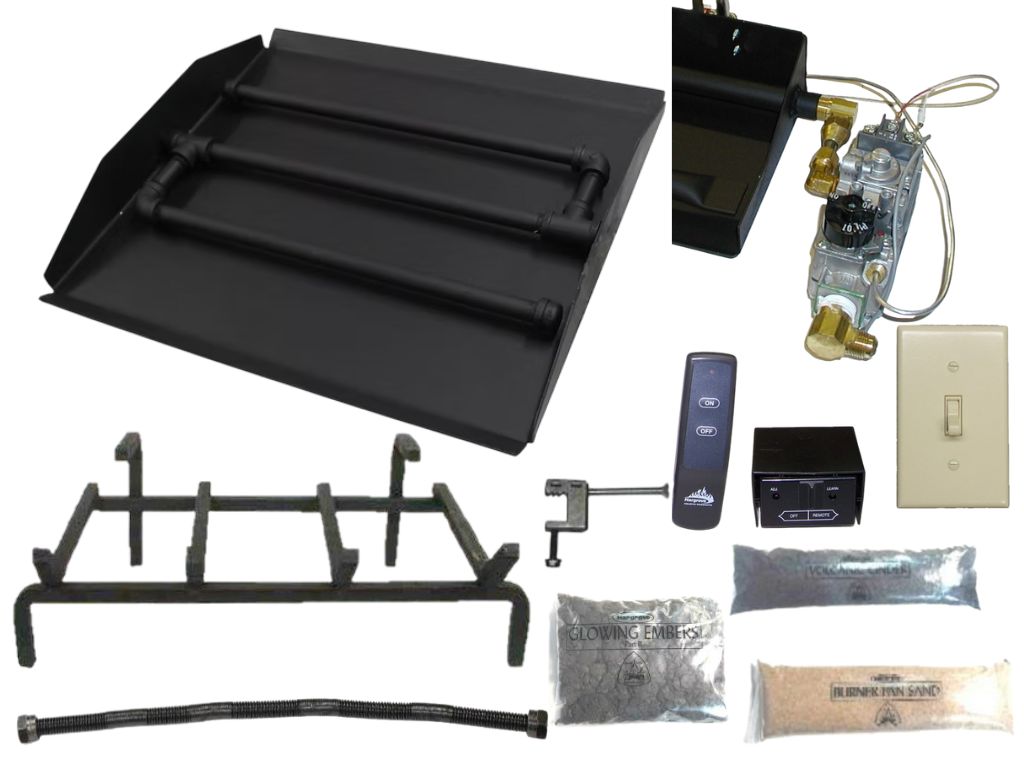

• Millivolt with Wall Switch- This one's pretty convenient because you can control it with a wall switch. You can also upgrade to a remote control if you prefer. It's versatile too, working with both natural gas and liquid propane. Just remember, if you're opting for liquid propane, you'll need that conversion kit.

Features:

• The Hargrove Rustic Timbers Vented See-Thru Log Set comes in various sizes with a burner and valve.
• Available in natural gas or propane for indoor vented fireplaces.
• Each log is hand-painted for a realistic appearance.
• The molding process replicates natural wood textures.
• Made from durable ceramic fiber to withstand high temperatures.
• Includes a steel H-shaped burner kit with sand or vermiculite, volcanic cinders, and glowing embers.
• Provides up to 100,000 BTUs with larger log sets for effective heating.
• Features multiple ignition control options, including manual, remote, and wall-mounted systems.
• Certified to meet RGA-2-72, ANSI Z21.84, and PFS standards.

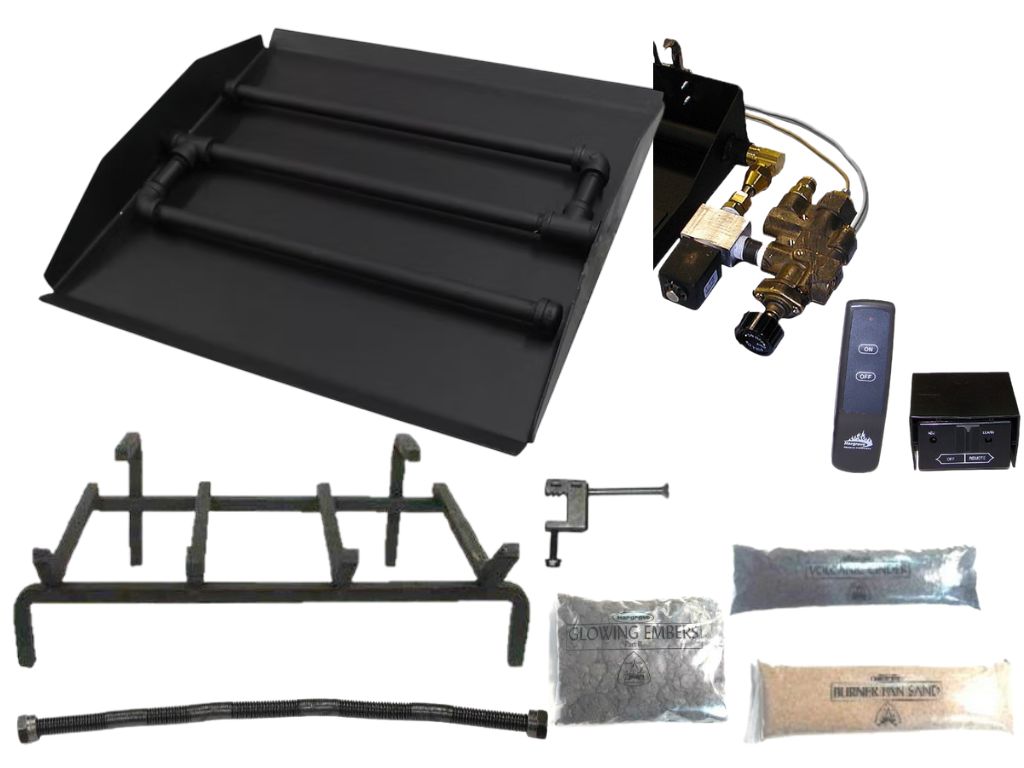

INCLUDES:

• See-Thru Burner
• Orifice
• See-Thru Grate
• Non-Whistling Gas Flex Connector
• Damper Stop

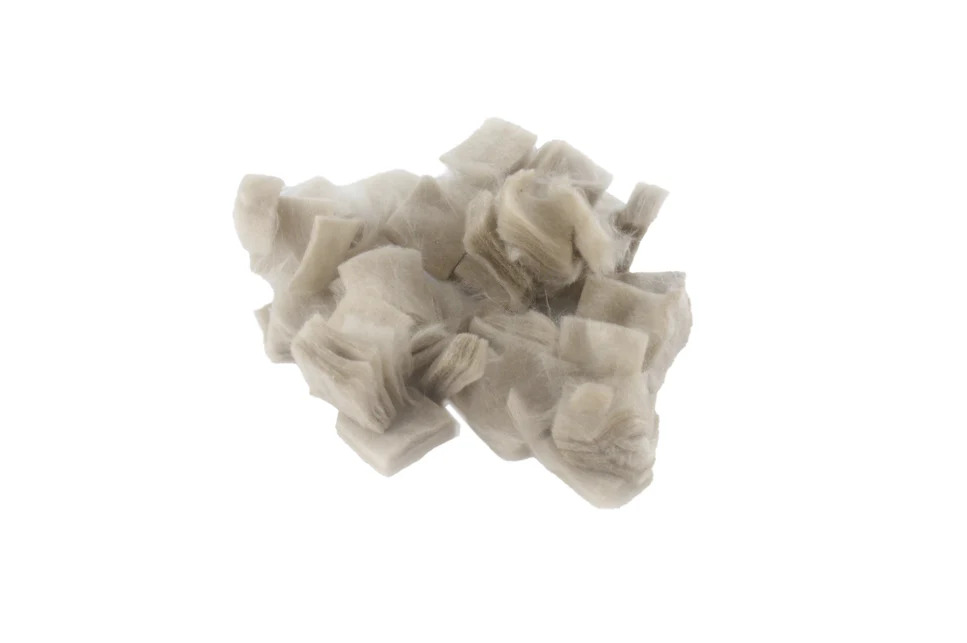

• Glowing Embers

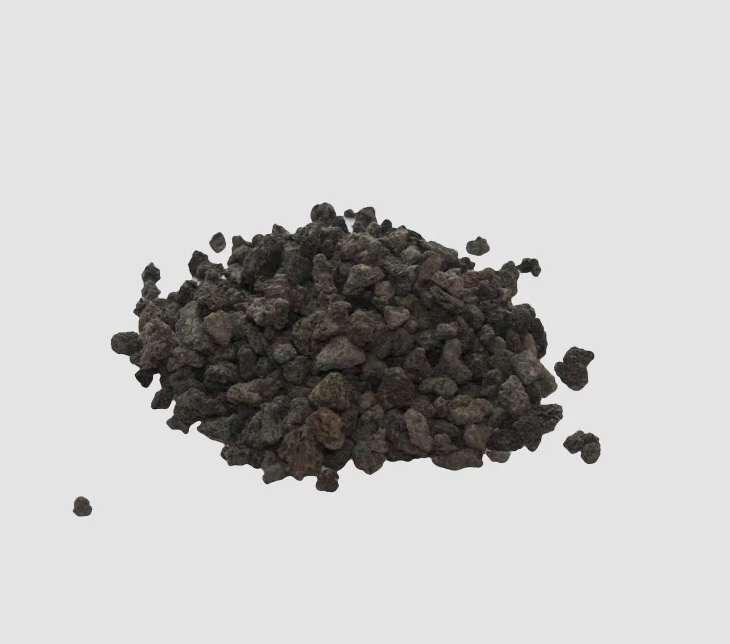

• Volcanic Cinder
• Sand

Specifications:

• Fuel Type: Natural Gas or Liquid Propane
• Log Set Type: Vented Indoor
• Log Style: Rustic Timbers
• Available Widths: 21", 24", 30 and 36"
• Number of Logs: 18–22 logs (varies by size)
• Material: Ceramic Fiber
• Burner Type: See-Thru Burner (16-Gauge Steel)
• Ignition Options: Match Light, Safety Pilot, Latchtap with On/Off Remote, Variable Flame with Remote, and Millivolt Pilot with Wall Switch
