Grand Canyon Arizona Weathered Oak with See Through Burner

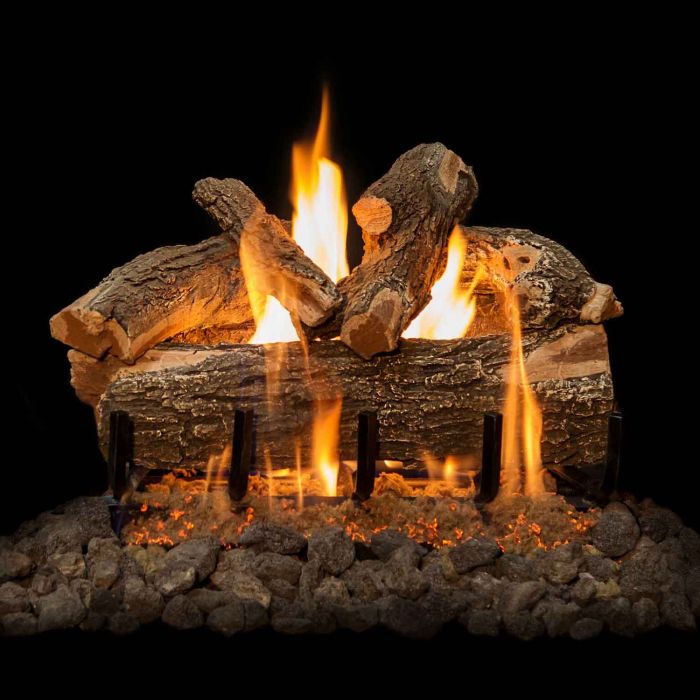

The Grand Canyon Arizona Weathered Oak See-Through Log Set is perfect if you're going for a striking, two-sided fireplace that can be viewed from both sides. The logs are modeled after real weathered oak, giving you that rustic, natural vibe with lots of rich texture, as if the wood has been aged by the elements over time. Now, what's cool about this setup is that it comes with see-through burners. These are designed for two-sided fireplaces, so the flames appear equally beautiful and visible from both rooms or spaces. The fire looks incredibly realistic, with those dancing flames wrapping around the logs, just like you’d see in a traditional wood-burning fire. You get that ambiance but with the ease of gas.

It also includes a valve system that makes controlling the flame easy and safe. You can adjust the flame height and intensity with precision, so whether you want a roaring fire or just a subtle glow, you’ve got full control. In short, this log set gives you the natural charm of weathered oak and the modern convenience of see-through burners. It’s a perfect way to enjoy a fireplace from two spaces with a seamless, shared experience!

Please Note: Vented gas fireplace logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.

Burners:

2-Burner See Through: available in 18"–60", features a main rear burner with a dual-action front ember burner. Its fully welded, sandless stainless steel chassis ensures durability. ANSI-certified, it offers concealed pilot mounting, ½” piping and bar stock, and a gas inlet on either side. Convertible from natural gas to LP, it includes lava rock, embers, and connection fittings. A lifetime warranty applies for indoor installations.

3-Burner See Through: available in 18"–42", features an even distribution rear burner, a dual-action middle burner, and a dedicated member glow burner. ANSI-certified, it has a fully welded, sandless stainless steel chassis for lasting durability. With ½” piping, bar stock, and a gas inlet on either side, it also includes concealed pilot mounting. Convertible from natural gas to LP, it comes with lava rock, embers, and connection fittings. A lifetime warranty applies for indoor installations.

Valves and Control:

Manual Valve: The Manual Valve controls the flow of gas to your appliance. With a low-profile design, it’s easy to install and operate. You can turn the valve on or off using a knob or wrench. It handles a maximum inlet pressure of 14” W.C. and can manage up to 90,000 BTUs for Natural Gas (NG) and 240,000 BTUs for Liquid Propane (LP). The valve can handle temperatures up to 300°F.

Safety Pilot: The Safety Pilot is a standing pilot system designed for reliable safety. With a low-profile design, it’s simple to install and operate manually. It works with both Natural Gas (NG) and Liquid Propane (LP), handling up to 90,000 BTUs and a maximum inlet pressure of 14” W.C. It’s built to withstand temperatures up to 300°F.

High Capacity Safety Pilot: The High Output Safety Pilot is a standing pilot system designed for high-efficiency performance. It supports both Natural Gas (NG) and Liquid Propane (LP), managing up to 124,000 BTUs and 200,000 BTUs, respectively. It features a maximum inlet pressure of 14” W.C. and operates manually for on/off control. With a temperature rating of 250°F, it ensures reliable and safe operation.

Millivolt Quick Mount Kit: The Millivolt Quick Mount Kit features a low-profile design and a standing pilot system. It provides simple on/off control and is compatible with both Natural Gas (NG) and Liquid Propane (LP). It supports a maximum inlet pressure of 14” W.C., with BTU ratings of 70,000 for NG and 110,000 for LP. The valve is rated for temperatures up to 175°F.

Modulation Millivolt Kit: The Modulating Millivolt Kit features a standing pilot system with variable flame height control. Its low-profile design ensures easy installation. It operates with both Natural Gas (NG) and Liquid Propane (LP), managing up to 120,000 BTUs and a maximum inlet pressure of 14” W.C. The valve is rated for temperatures up to 225°F, providing flexible and efficient flame adjustment.

High Capacity Millivolt: The High Capacity Millivolt system is designed for high-volume output with a standing pilot system. It offers on/off control and supports both Natural Gas (NG) and Liquid Propane (LP). It can handle up to 370,000 BTUs for NG and 560,000 BTUs for LP, with a maximum inlet pressure of 14” W.C. The valve is rated for temperatures up to 175°F, providing robust and efficient performance.

Battery Electronic Ignition: The Battery Electronic Ignition system uses a non-standing pilot with 2-D cell battery-powered electronic ignition. It supports on/off operations and works with both Natural Gas (NG) and Liquid Propane (LP). The system handles a maximum inlet pressure of 14” W.C., with BTU ratings of 88,000 for NG and 110,000 for LP. The valve is rated for temperatures up to 175°F.

Electronic Ignition System: The Electronic Ignition System features a non-standing pilot with 24V electronic ignition. It includes an in-wall design and comes with a 6’-10’ pilot assembly. Designed for on/off operations, it supports both Natural Gas (NG) and Liquid Propane (LP). The system handles a maximum inlet pressure of 14” W.C., with BTU ratings of 200,000 for NG and 110,000 for LP. The valve is rated for temperatures up to 175°F.

Remote Control: The GCRK system offers basic on/off operations with a convenient RF transmitter and receiver. It features an LCD temperature display for easy monitoring and comes complete with batteries and a wall plate for quick installation.

Features:

• Available in eight different sizes including: 18 Inch|  24 Inch | 30 Inch | 36 Inch | 42 Inch | 48 Inch | 60 Inch
• Available as a natural gas or propane burning log set for indoor vented fireboxes only
• Beautifully handcrafted and hand-painted.
• Made from refractory ceramic with a lifetime warranty on the logs
• To ensure years of enjoyment, the materials are guaranteed to withstand high temperatures.
• The burner comes complete with lava rock and glowing embers to create a real ember bed look.
• Burner distributes up to a MAX 118,000 BTUs with the larger sizes.
• Choice of several burner styles from where you can achieve the most realistic burn pattern
• Many options are available to control your vented Grand Canyon gas log as well all depending on your valve choice.
• Fittings, lave rock, embers, flex line, and damper clamp are all included for easy installation.

Specifications:

• Log Set Type: See-Through Vented Indoor
• Log Set Style: Arizona Weathered Oak
• Fuel Type: Natural Gas or Propane
• Available Sizes: 18" to 60"
• Burner Type: 2-Burner or 3-Burner See-Through Vented
• Material: Refractory Ceramic
• Control Options: Remote Kit or Wall Switch
• Certification: ANSI Z21.60-2012 | CSA 2.26-2012
